From: An automated 3D-printed perfusion bioreactor combinable with pulsed electromagnetic field stimulators for bone tissue investigations

Figure 1

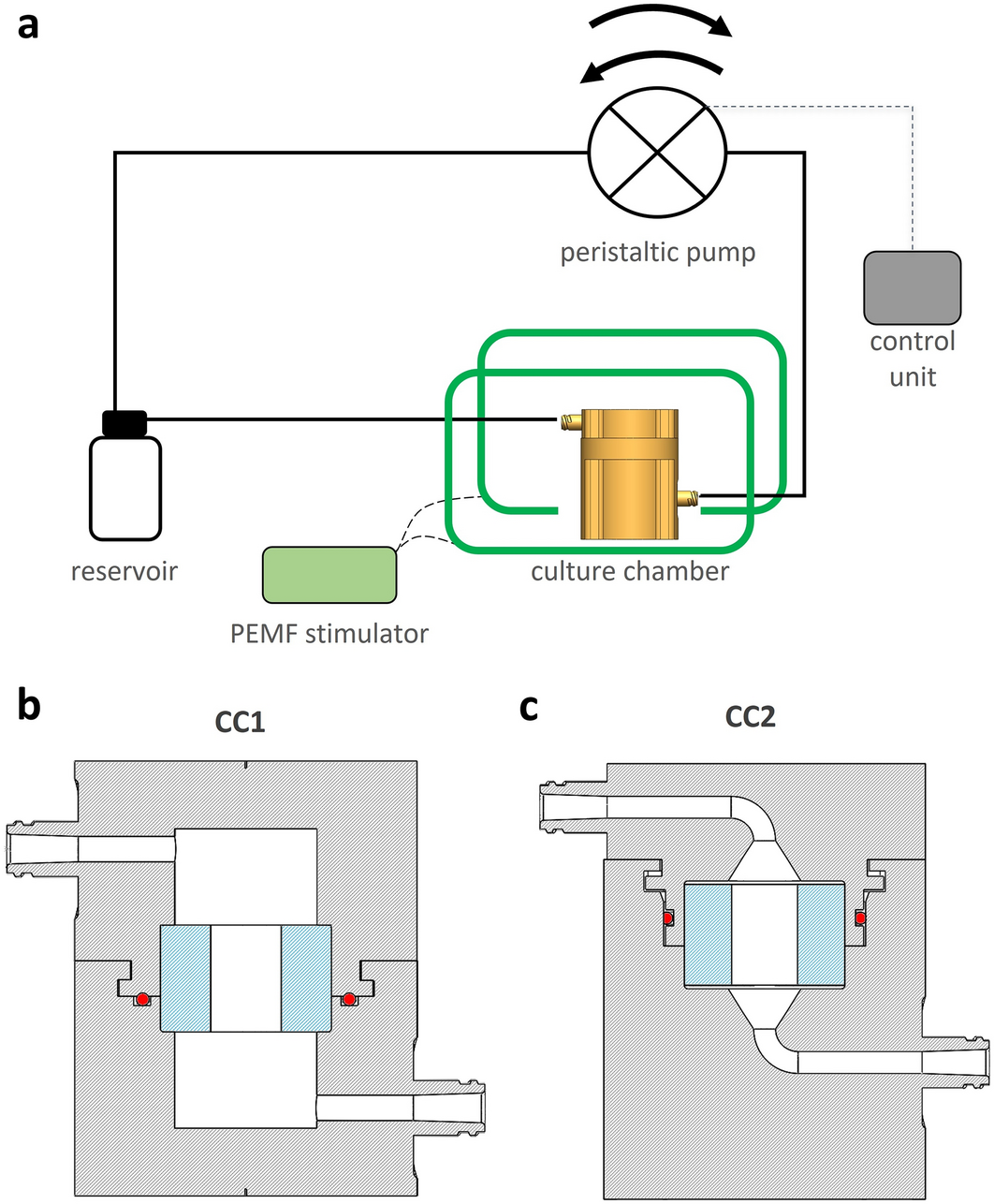

Bioreactor scheme and culture chamber design. (a) Schematic drawing of the bioreactor setup combined with the PEMF stimulator, with the connections among the culture chamber, the perfusion unit, and the control unit. Section views of the 3D models of CC1 (b) and CC2 (c), in grey the culture chamber, in blue the silicone holder, in red the o-ring.
