Figure 5

From: An automated 3D-printed perfusion bioreactor combinable with pulsed electromagnetic field stimulators for bone tissue investigations

Figure 5

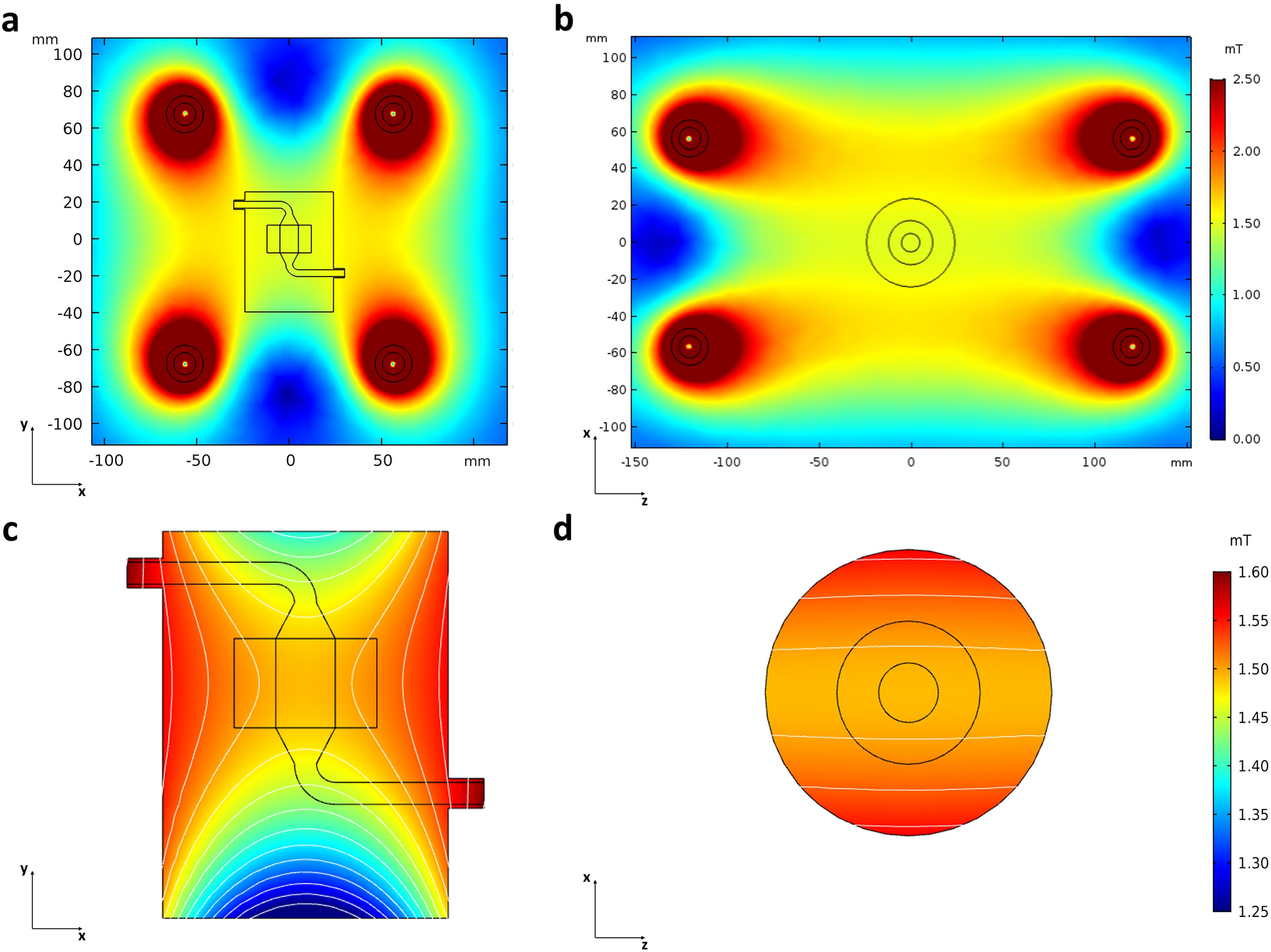

Contour plots with isolines of the magnetic field magnitude developing around and within the bioreactor culture chamber located between the PEMF stimulator solenoids. (a) Distribution of the magnetic field on the xy cross plane. (b) Distribution of the magnetic field on the xz cross plane. (c) Distribution of the magnetic field within the longitudinal section of the culture chamber. (d) Distribution of the magnetic field within the transverse section of the culture chamber.
