Figure 1

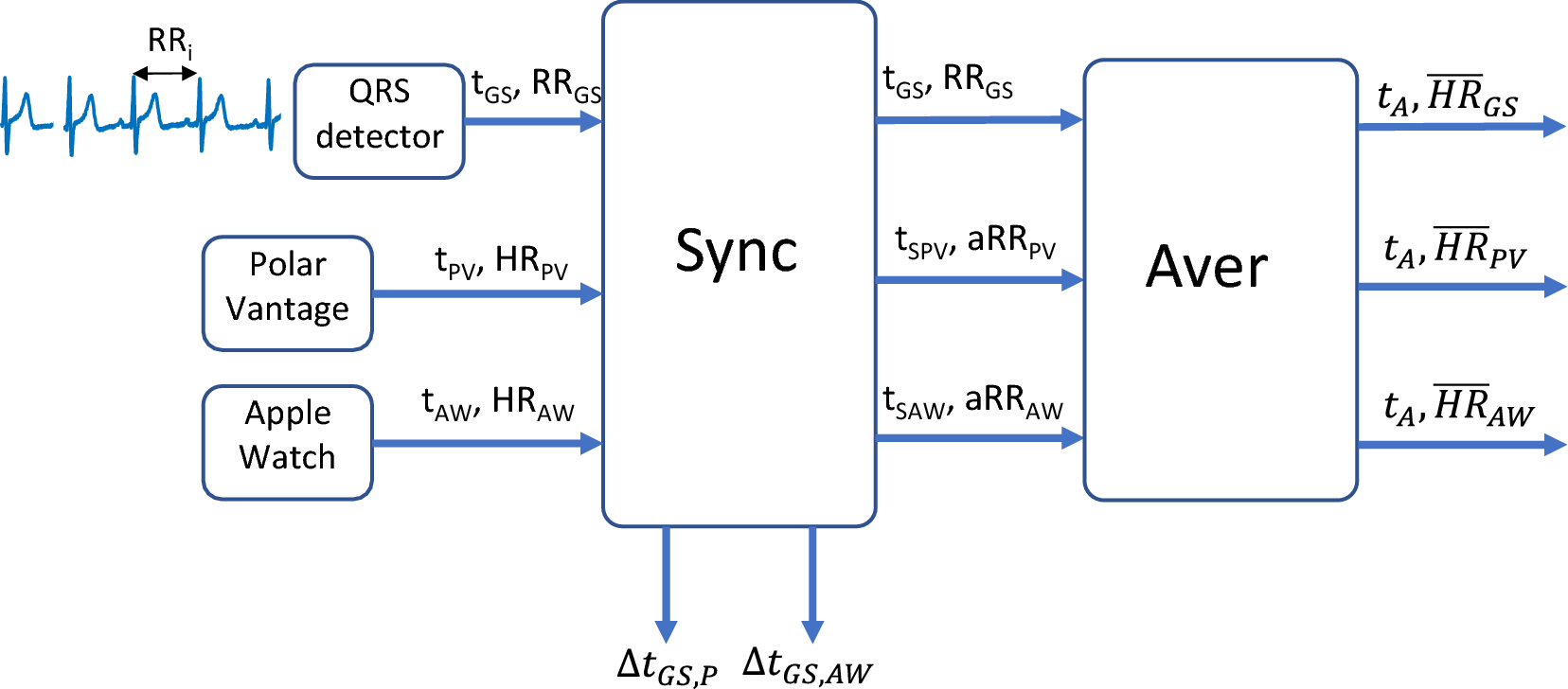

Signal processing stages. The Sync block synchronizes the time stamps of the point heart rate estimates for the alternative measurement methods while the Aver block provides an average of point estimates for each method at the same reference time stamp. See text for further details.
