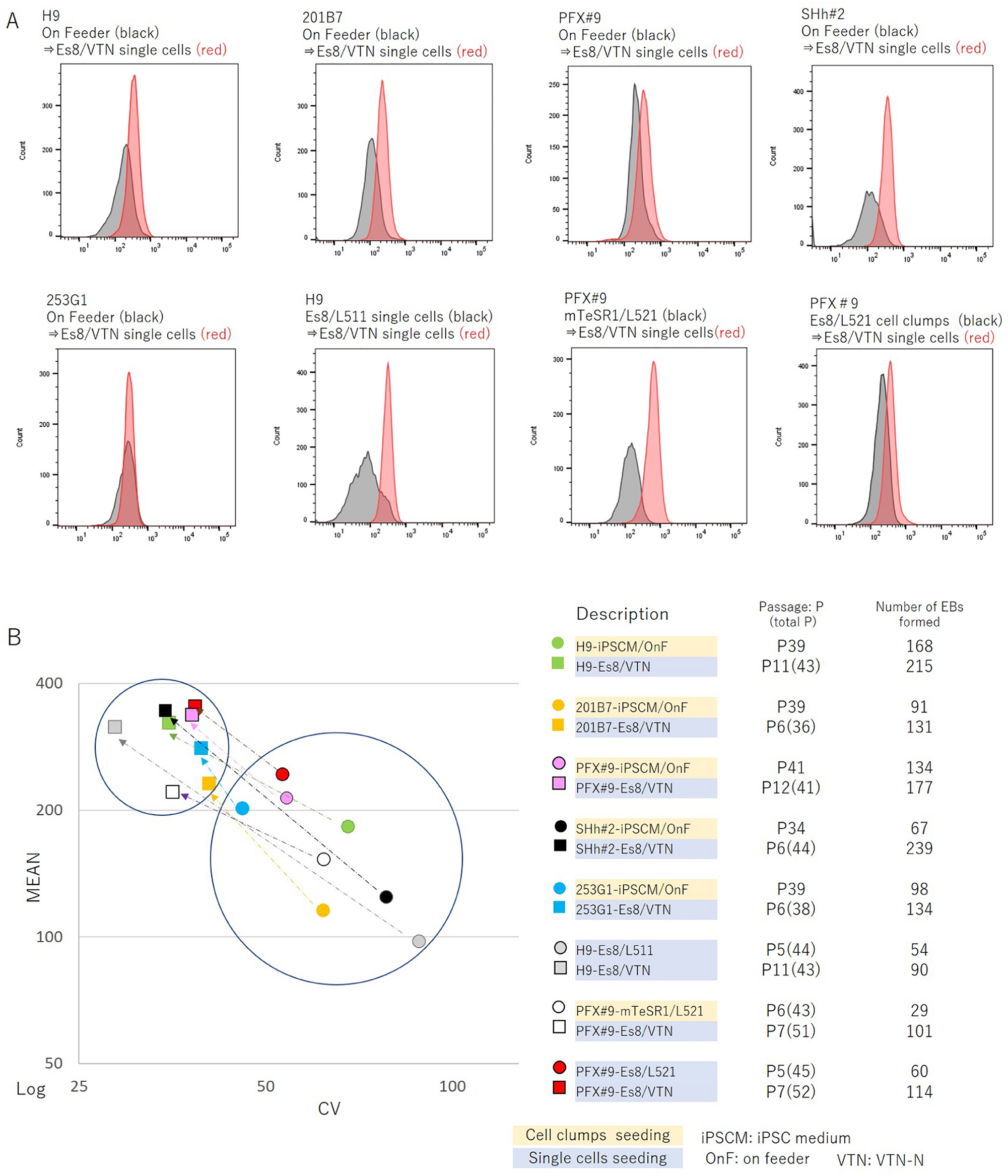

Figure 5
From: Improving the differentiation potential of pluripotent stem cells by optimizing culture conditions
Recloning of cells with differentiation potential based on culture conditions. (A) iPSC clones (201B7, PFX#9, SHh#2, or 253G1 cells) or ESC clones (H9 cells) were cultured either on feeder cells or on L511- or L521-coated dishes with iPSC or mTeSR1 medium. Clones were then transferred to Es8 medium and cultured on VTN-N–coated dishes. The mean and convergence of CHD7 expression of cell clones was determined by flow cytometry before (gray histogram) and after (red histogram) changing culture conditions. Representative results from three independent experiments are shown. (B) Flow cytometric analysis of cell clones for the mean and coefficient of variation (CV) measured before (circle) and after (square) changing culture conditions are plotted on the left panel and the differentiation potential before and after changing the culture conditions was assessed by the number of EBs formed and is shown on the right panel. The data set shown in (B) was generated from the same samples shown in (A).
