Figure 2
From: Characterization of the unique oral microbiome of children with Down syndrome

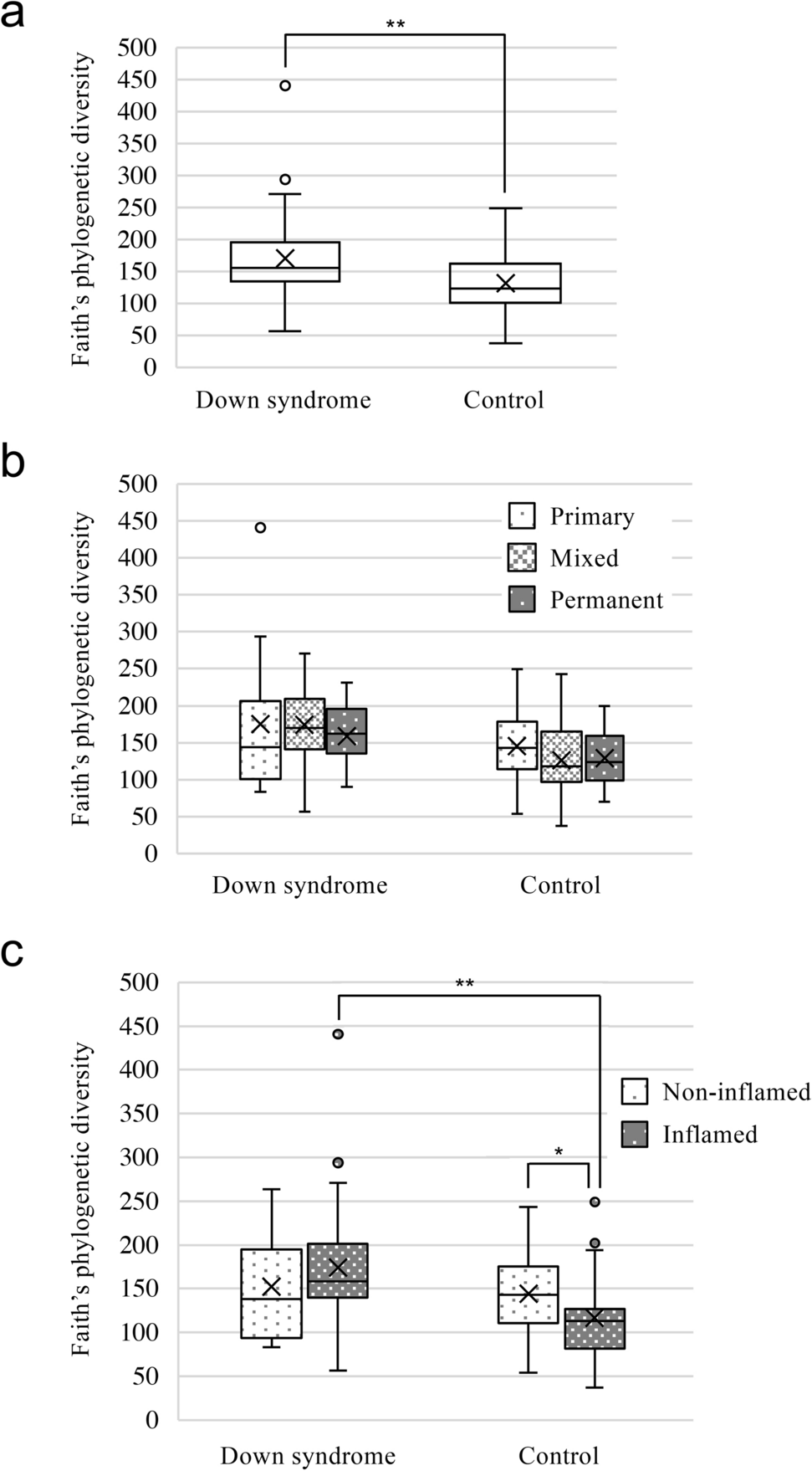

Faith’s phylogenetic diversity analysis of α-diversity in the Down syndrome and the control groups. Comparisons between the two groups were made for (a) all participants, (b) dentition stage, and (c) gingival inflammation status. Whiskers indicate maximum and minimum values, boxes indicate the interquartile range, X indicates the mean value, and circles indicate outliers. *P < 0.05 and **P < 0.01 by the Kruskal–Wallis test (pairwise).
