Figure 4
From: New insights into detecting alizarin from autofluorescence in marked glass eels

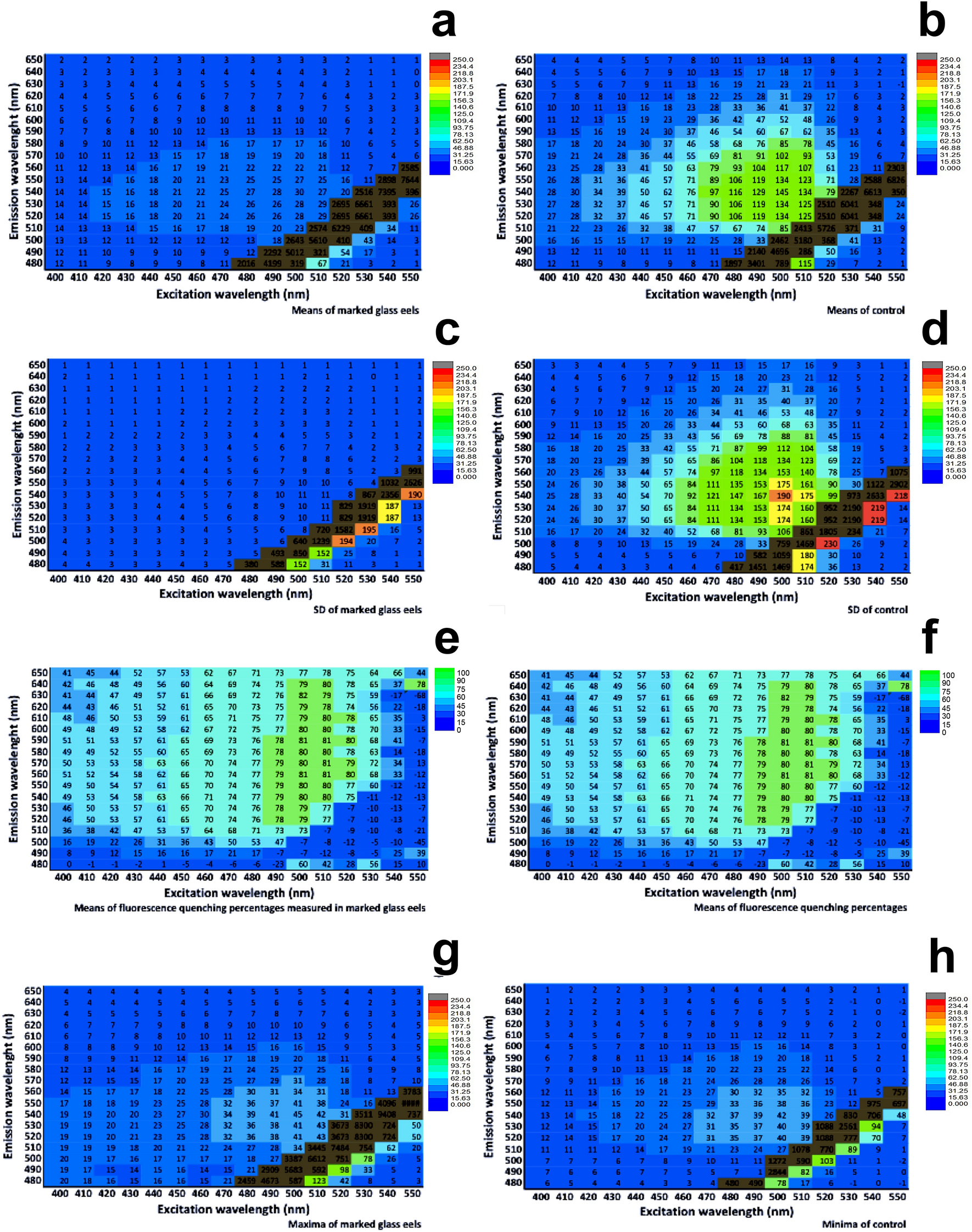

Excitation-Emission Matrix (EEM) spectra of glass eels in the alizarin peak. EEM of fluorescence intensities means of (a) marked and (b) control glass eels; EEM of fluorescence intensities standard deviations of (c) marked and (d) control glass eels; EEM of (e) means and (f) standard deviations of the fluorescence quenching percentage measured in the marked group; EEM of the fluorescence intensities (g) maximum of the marked glass eels and (h) minimum of the control glass eels. Fluorescence intensities are in arbitrary units (a. u.) and presented for each excitation-emission wavelength (numbers in the cells). n = 12 in each group.
