Figure 5
From: New insights into detecting alizarin from autofluorescence in marked glass eels

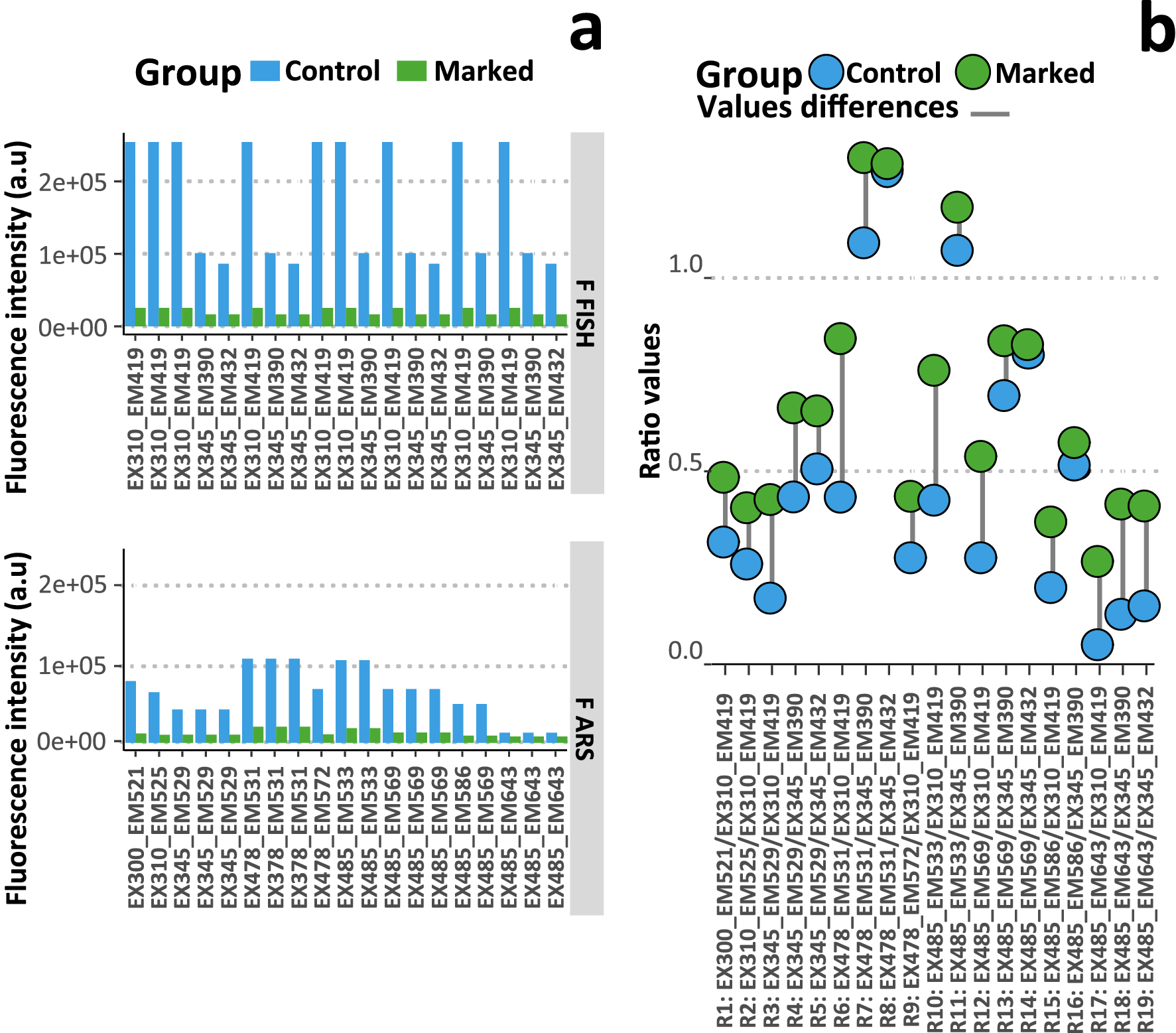

Fluorescence peaks and their ratios. (a) Graph plot of the fluorescence intensities of peaks within the alizarin signal (FARS) and within the natural fish signal (FFISH) used in the alizarin fluorescence ratios (Rn). (b) Graph of the values of the 19-alizarin fluorescence ratios (Rn n:1→19) that discriminated the marked (n = 12) from the control (n = 12) glass eels. The grey lines represent the differences in the ratios values between the groups. R is the ratio of FARS to FFISH.
