Figure 1

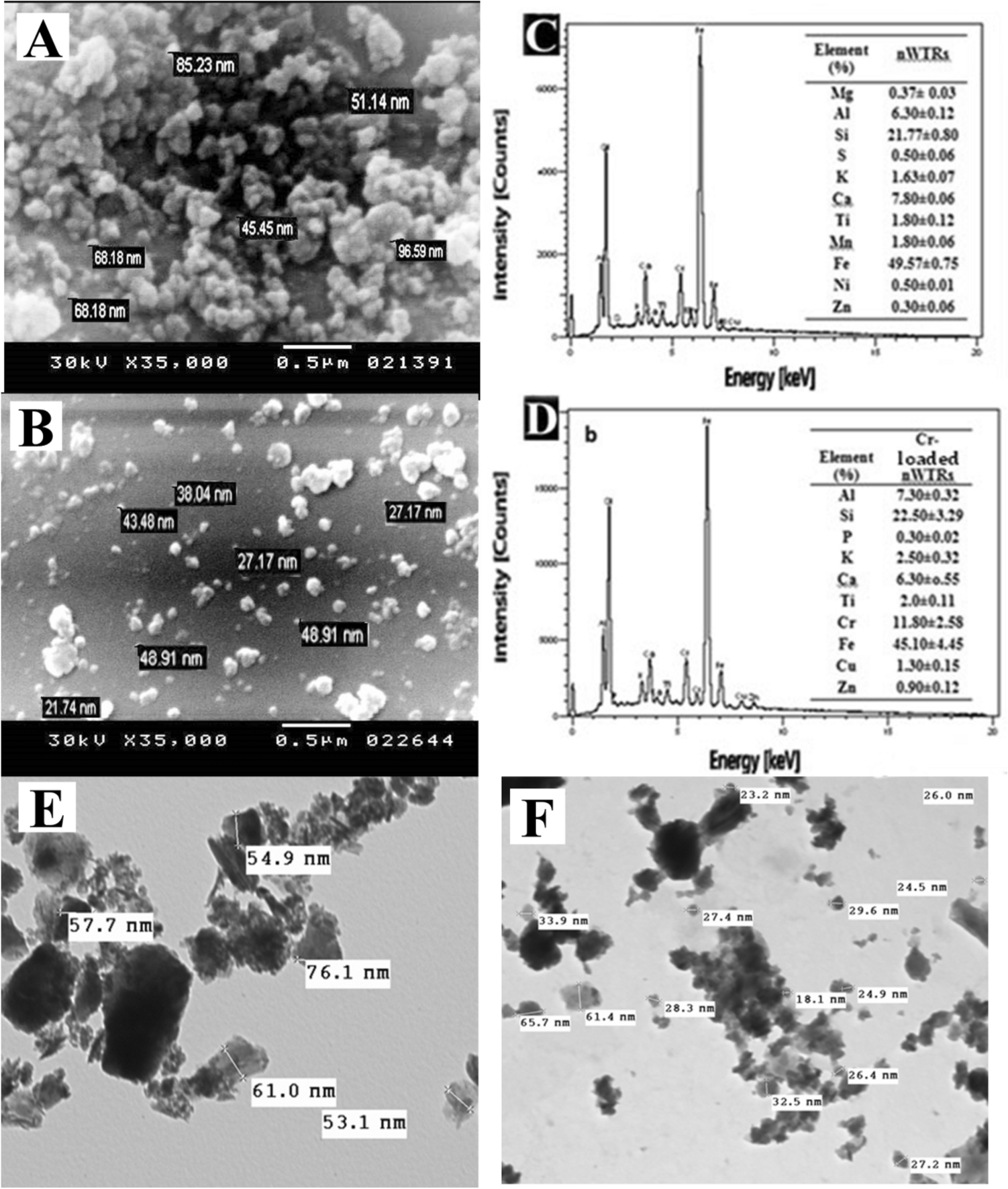

Scanning electron microscopy (SEM) image and energy dispersive X-ray (EDX) elemental distribution of nWTRs (A–C), the Cr(VI)—loaded nWTRs (B–D), Transmission electron microscopy (TEM) image of nWTRs (E) and Cr(VI)—loaded nWTRs (F).
