Figure 3
From: Drought characterization over Indian sub-continent using GRACE-based indices

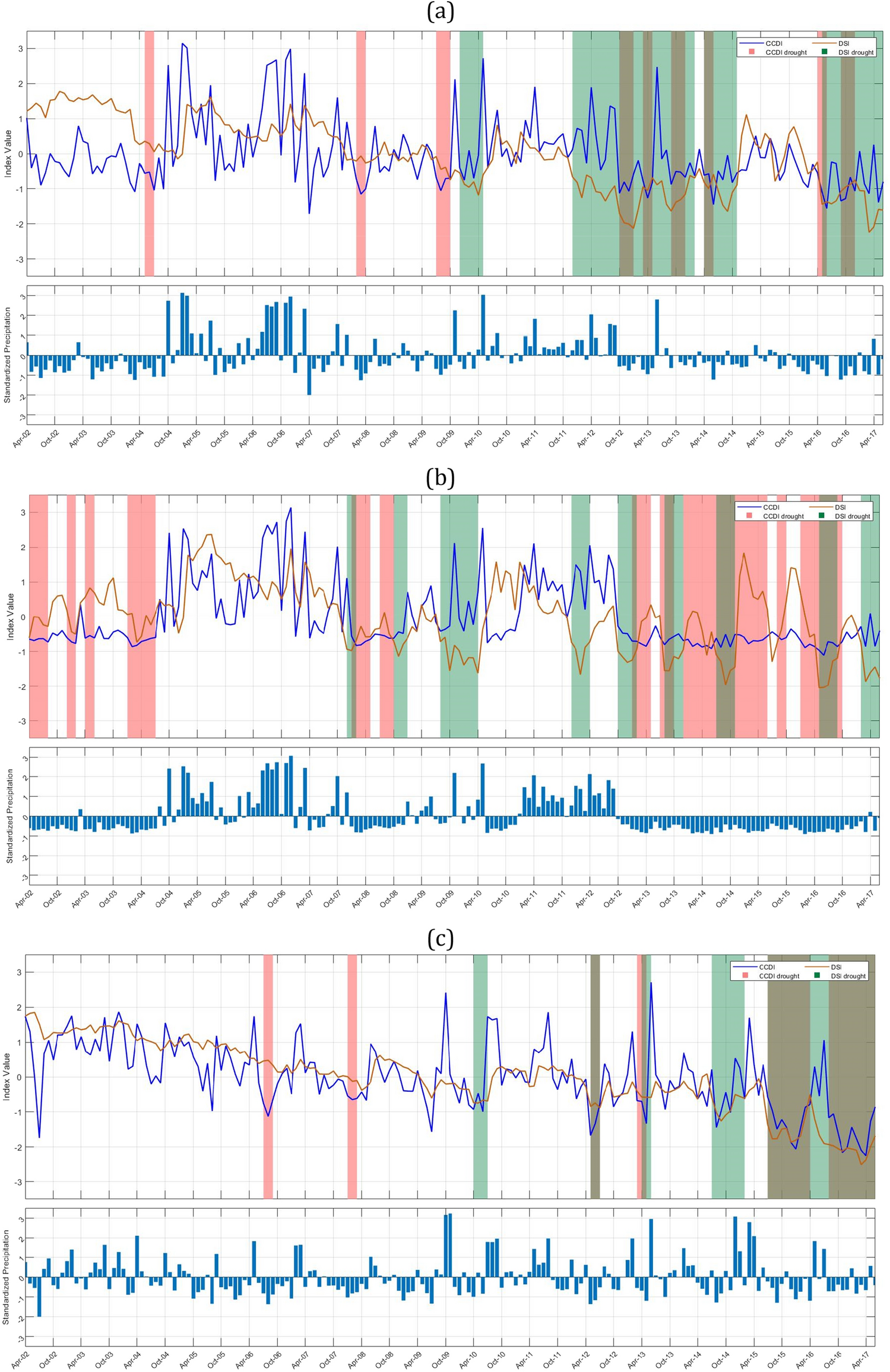

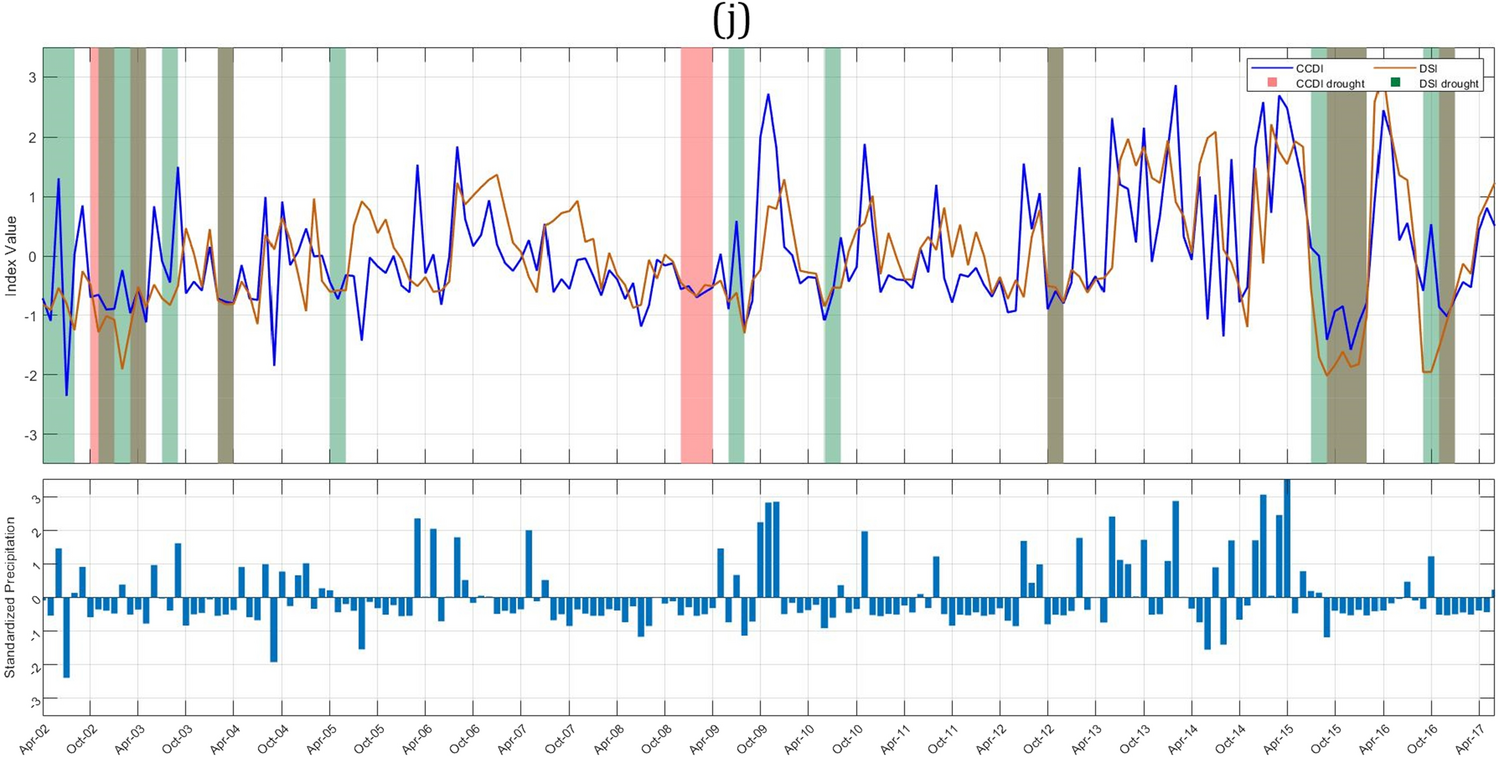

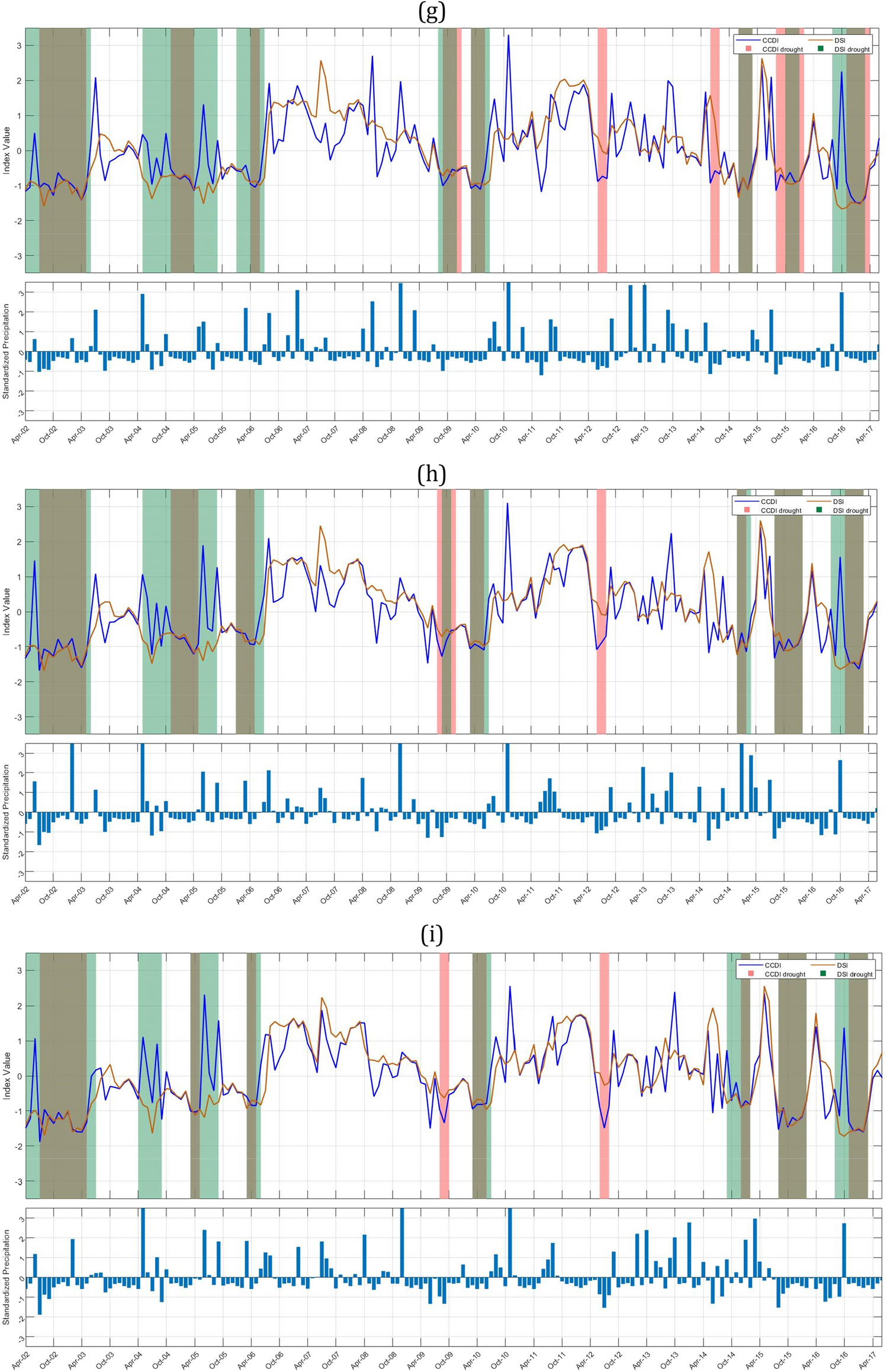

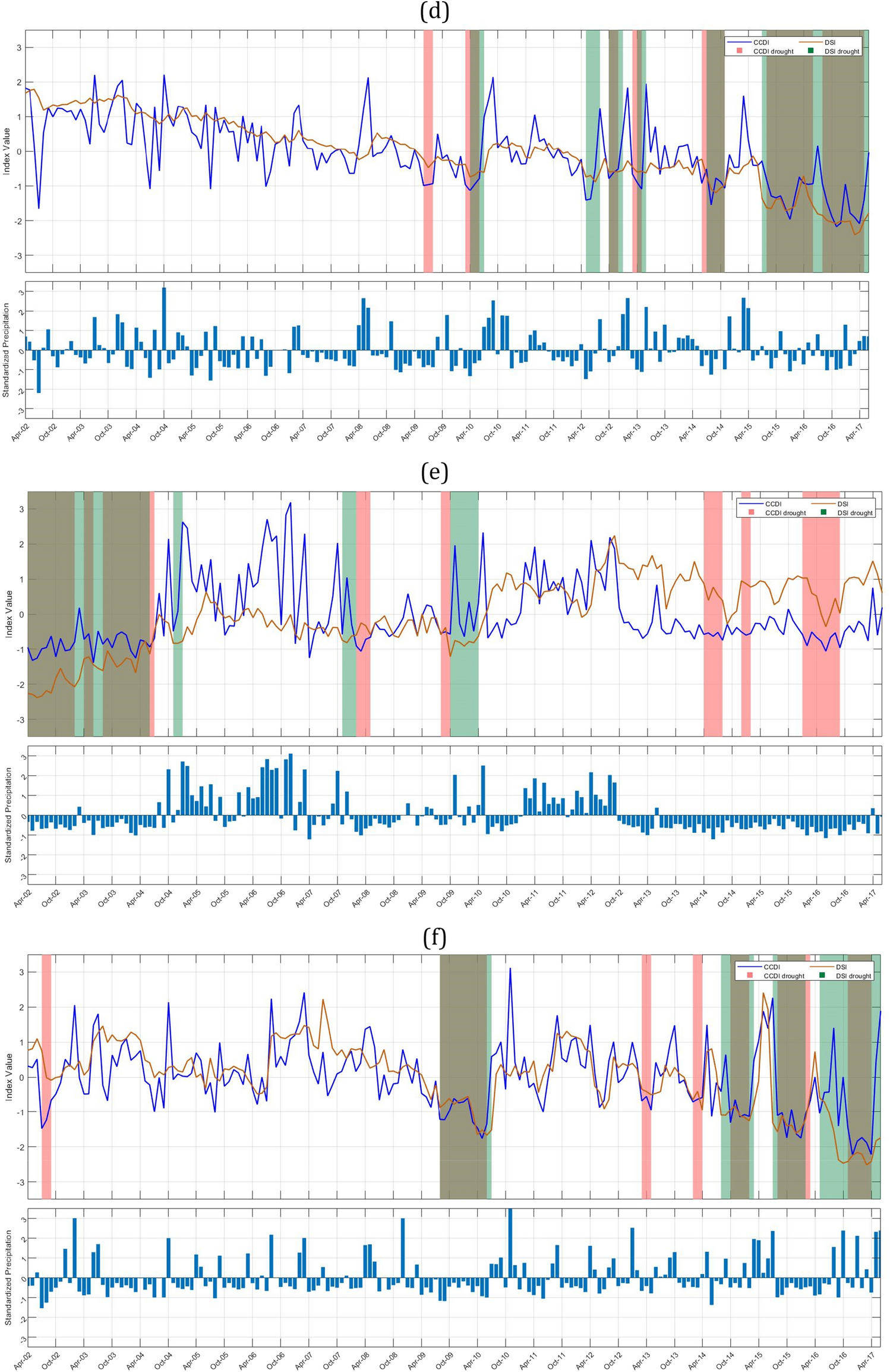

Time series of CCDI (blue line) and GRACE-DSI (orange line) are plotted along with the drought events identified based on CCDI (pink bands) and GRACE-DSI (green bands). The bottom bar graph shows the standardized precipitation variation over time (April 2002–June 2017). This plot is to understand whether the occurrence of drought is due to the deficit in precipitation, TWS, or both. (a) Indus Upper sub-basin (b) Shyok (c) Ramganga (d) Yamuna Upper (e) Area of North Ladakh not draining into Indus basin (f) Luni Upper (g) Luni lower (h) Saraswati (i) Sabarmati lower (j) Narmada lower sub-basin.
