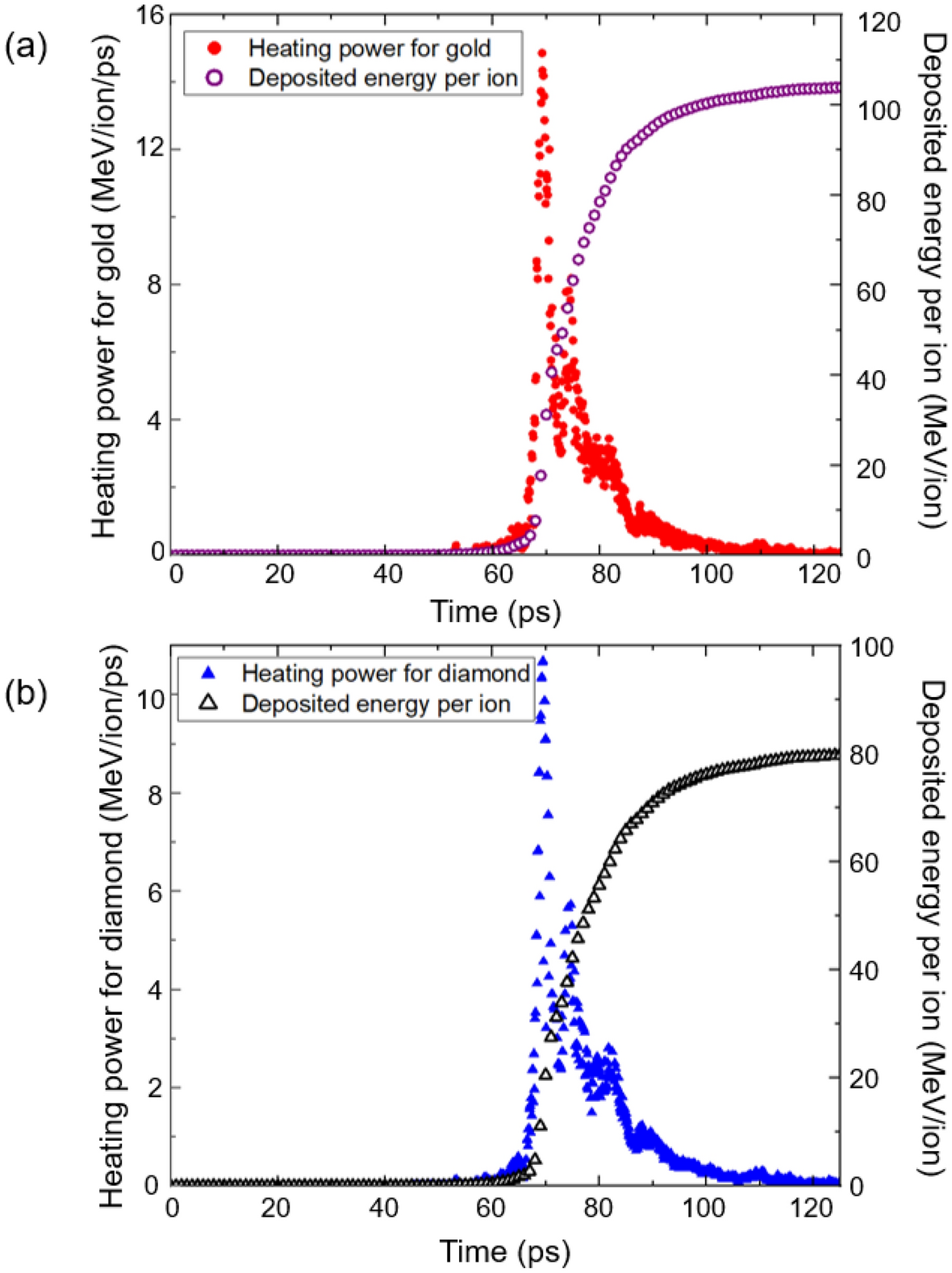

Figure 2
From: Temperature evolution of dense gold and diamond heated by energetic laser-driven aluminum ions
(a) The heating power of the incident aluminum ions for a 10-μm-thick gold sample at an angle of 45° is plotted as a function of time from 0 to 125 ps. The deposited energy per ion is also shown as a function of time. (b) The heating power for a 15-μm-thick diamond sample at an angle of 45° is shown as a function of time from 0–125 ps. The deposited energy per ion is also shown as a function of time.
