Figure 10
From: Design and test of smashing and scattering device of double-channel feeding ratoon rice harvester

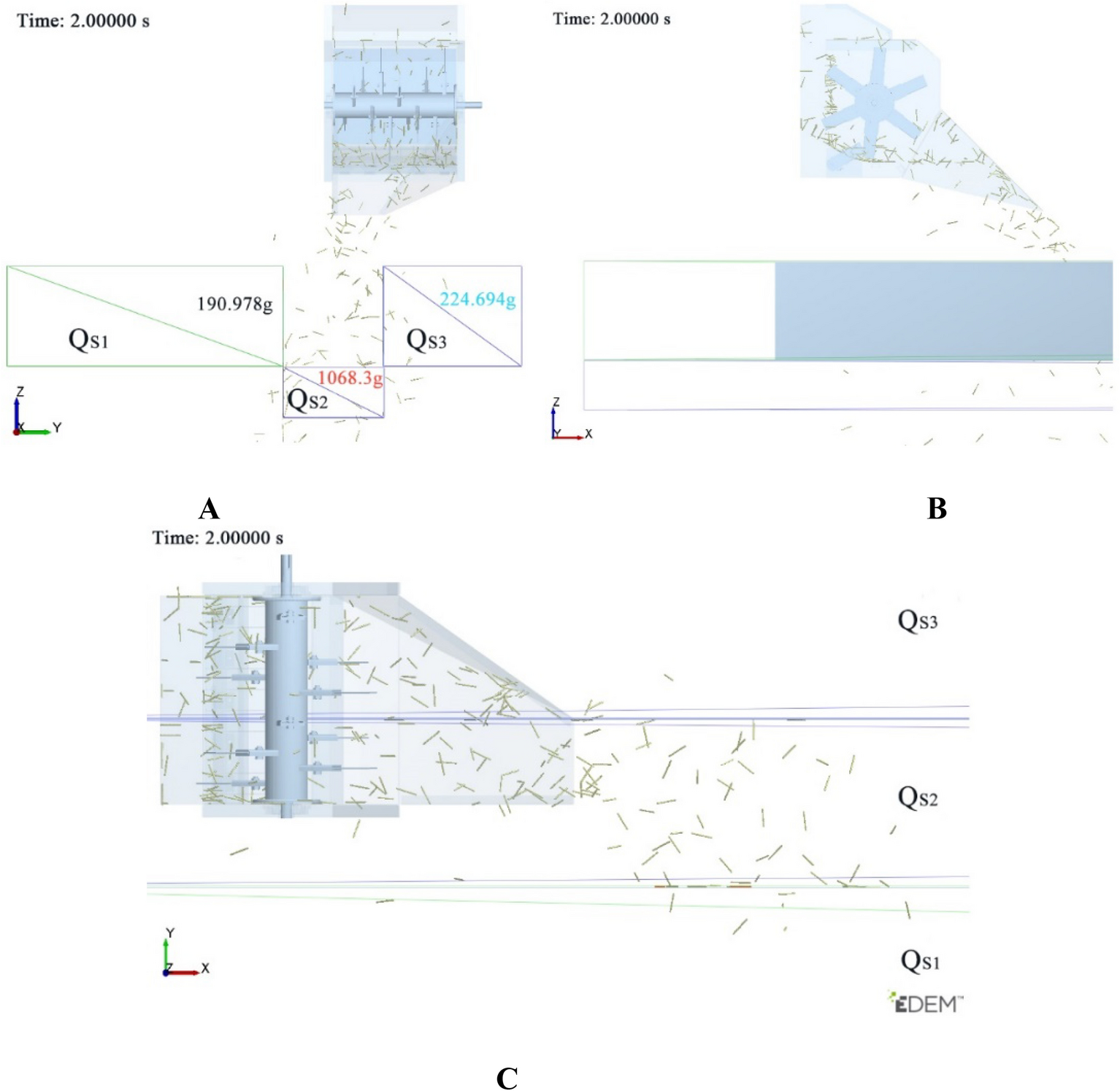

Scattering state of straw at 2 s in the simulation. (A) X direction view, (B) Y direction view, (C) Z direction view.
