Figure 3
From: Design and test of smashing and scattering device of double-channel feeding ratoon rice harvester

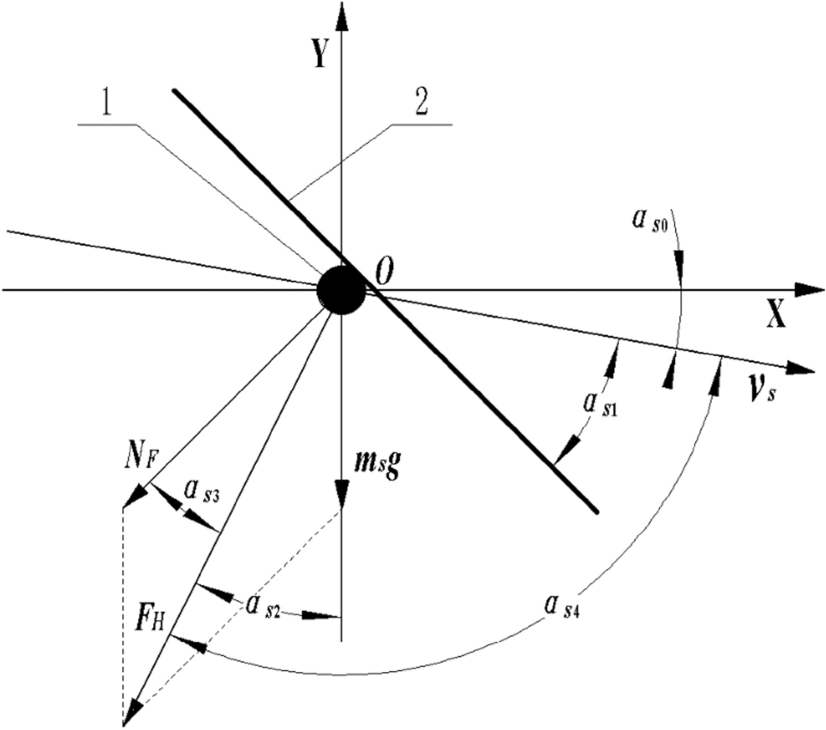

Analysis of deflect principle for straw deflector. (1) smashed straw, (2) straw deflector. Note: msg is the mass of the smashed straw, N; NF is the reactive force to smashed straw when it collides with the deflector, which is perpendicular to the deflector, N; FH is the resultant force of msg and NF, N.
