Figure 4
From: Design and test of smashing and scattering device of double-channel feeding ratoon rice harvester

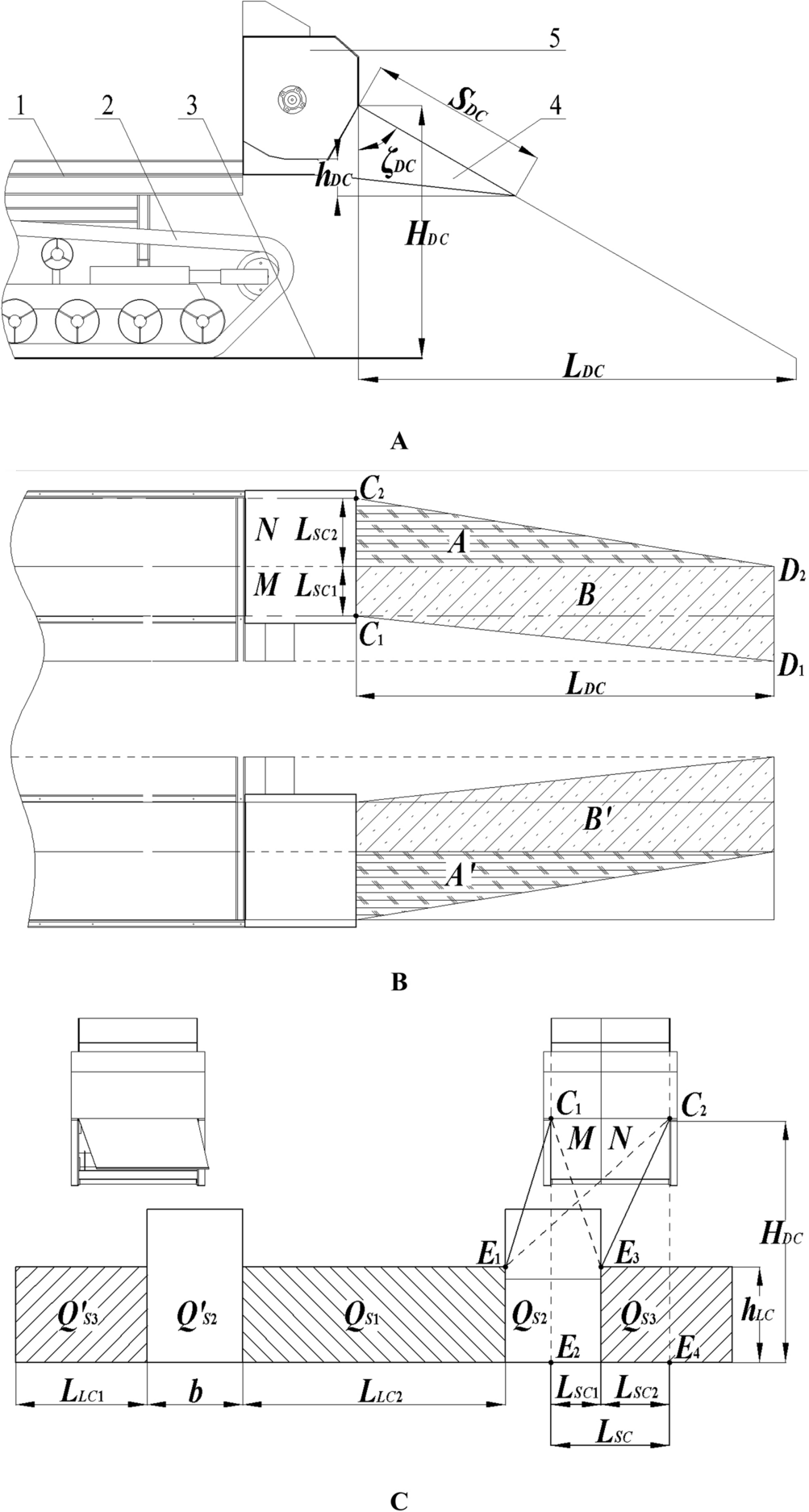

Diagram of smashed straw throwing. (A) Lateral view, (B) Top view, (C) Front view; (1) frame, (2) track, (3) ground, (4) straw deflector, (5) main body of the scatter box. Note: LSC is the width of the smashing and scattering device, mm; LSC1 is the width of the scatter device above the track, mm; LSC2 is the width of the scatter at the lateral of the track, mm; LDC is the scattering distance of the smashed straw, mm; LLC1, LLC2 is the width of the stubble area at the outer side of the track, mm; SDC is the length of the cover deflector, mm; ζDC is the angle between the cover deflector and the vertical direction, °; hDC is the height difference between the tail of the cover deflector and the outlet, mm; hLC is the stubble height, mm; HDC is the height from the top spot of the outlet to the ground, mm.
