Figure 5
From: Design and test of smashing and scattering device of double-channel feeding ratoon rice harvester

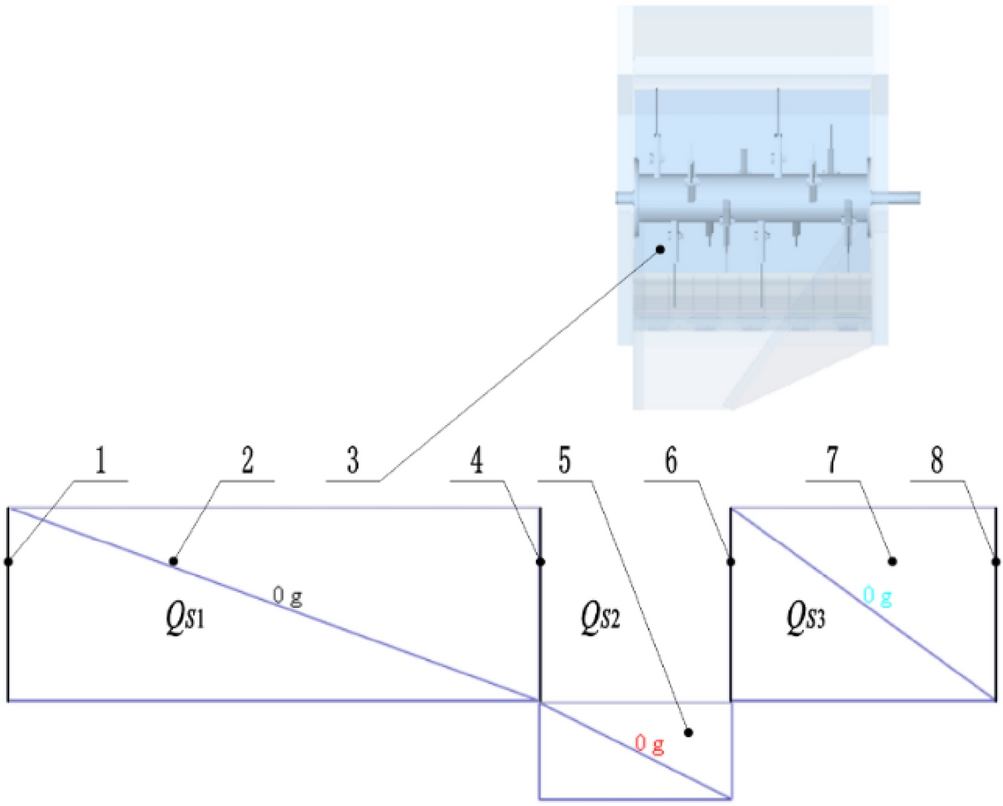

Simulation sensors setup. (1) baffle I, (2) square sensor I, (3) smashing and scattering device, (4) baffle II, (5) square sensor II, (6) baffle III, (7) Square sensor III, (8) baffle IV.
