Figure 3
From: Sequence-dependence of Cy3 and Cy5 dyes in 3ʹ terminally-labeled single-stranded DNA

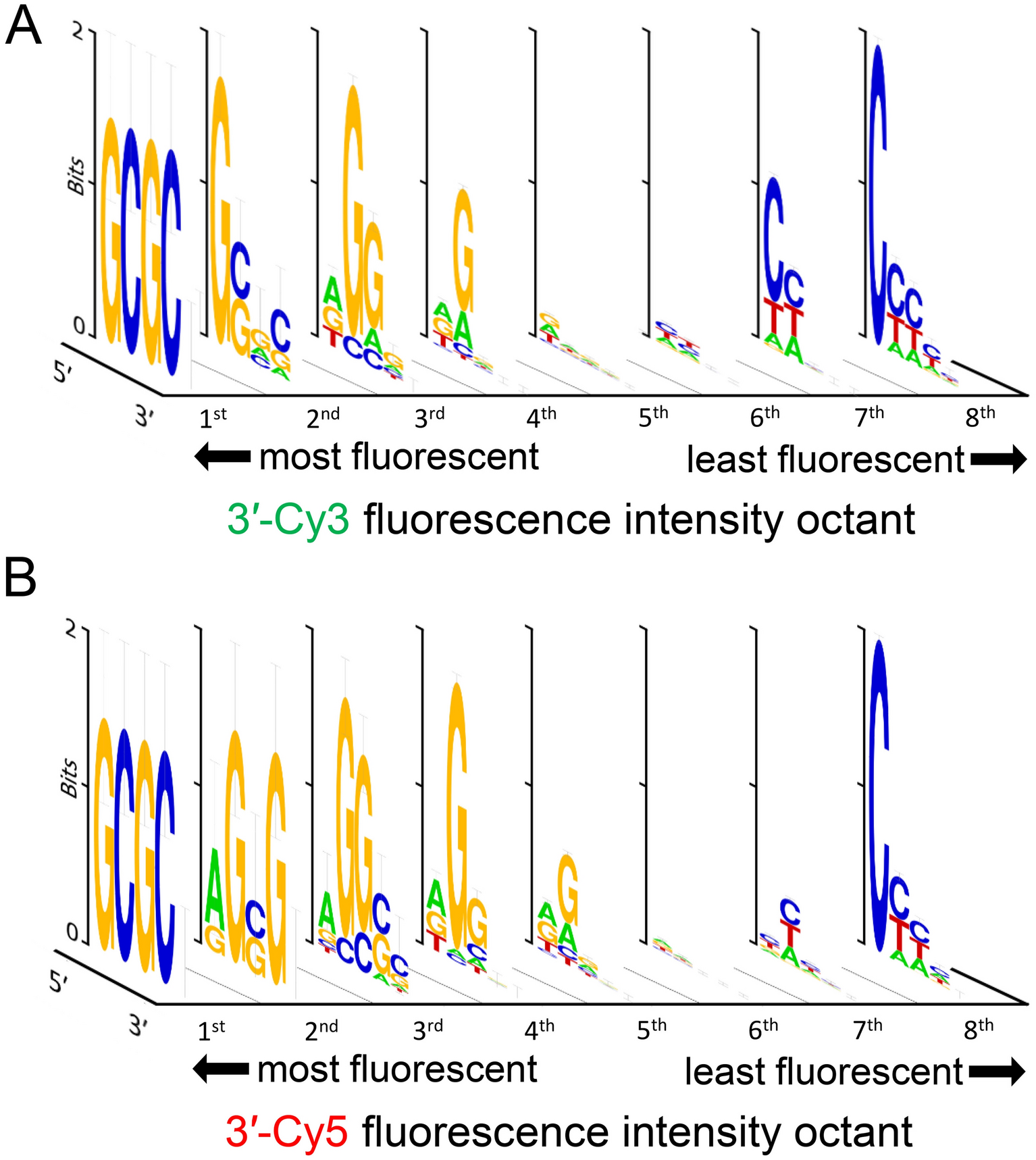

Sequence-dependent variations in the fluorescence intensity of 3′ Cy3- and Cy5-labeled single-stranded oligonucleotides. The intensity range in Figure 2 was divided into 8 equal parts from which consensus sequences were generated and the sequence logos for each octile arranged in descending order of fluorescence intensity (left to right), for 3′-Cy3 (A) and 3′-Cy5 labeling (B).
