Figure 3
From: Structure parameter design and bench test research of paddy field blades

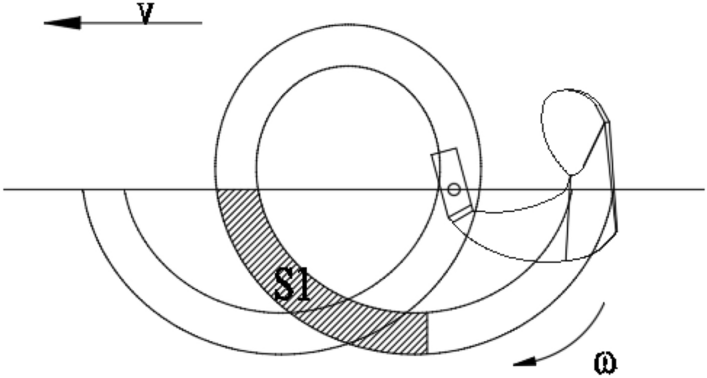

Blade movement trajectory. V is the speed of moving forward (mm/s), ω is the blade rotation speed (rad/s), and S1 is the volume of mud thrown (mm3).
