From: Multimodal combination of neuroimaging methods for localizing the epileptogenic zone in MR-negative epilepsy

Figure 2

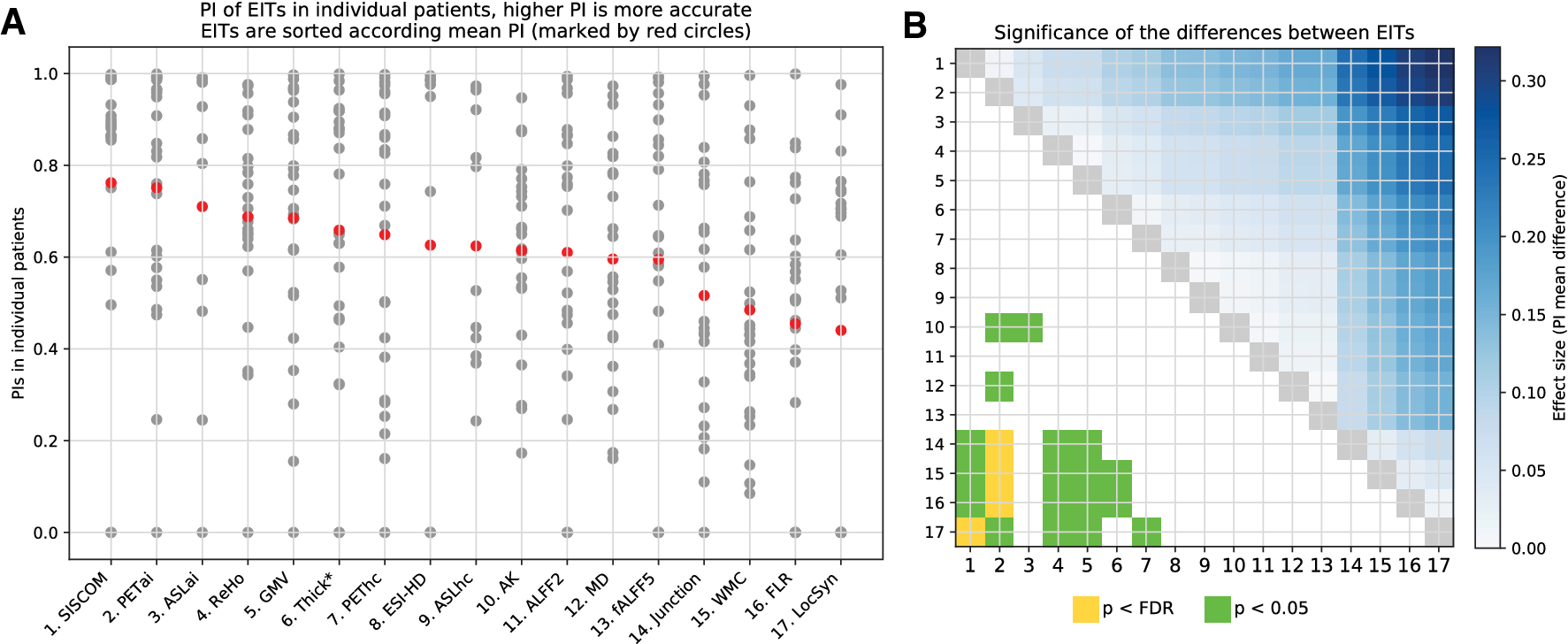

Mean Predictive Index of individual neuroimaging techniques (IMs). (A) The predictive index (PI) was calculated for each IM in each patient. Abbreviations of methods are presented in Table 1. For each IM, PIs were averaged, and the IMs were sorted according to mean PI (red points; a higher PI indicates better results for a given IM). (B) Matrix showing effect size of comparison of each pair in IMs. At the top is the difference in mean PI (a darker blue indicates a larger difference); at the bottom is the statistical significance for each comparison (uncorrected p < 0.05 and after FDR correction). The numeric labels indicating methods correspond with the order in Part A.
