Figure 3
From: Effective nonlinear responses of three-phase magnetoelectric composites

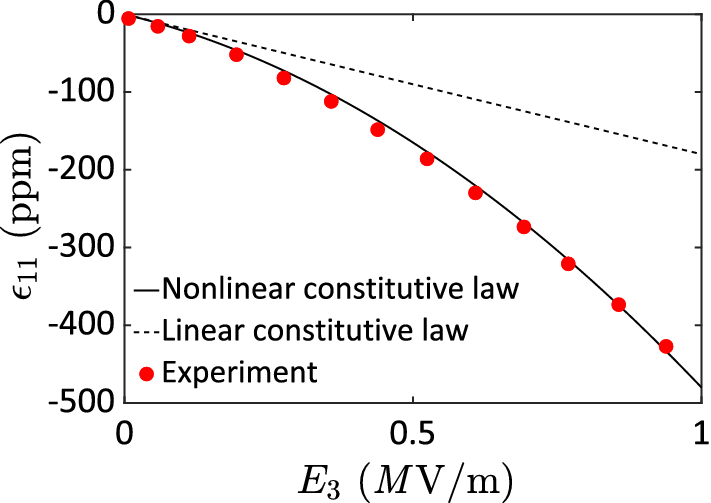

In-plate strain response \(\varepsilon_{11}\) for a stress-free piezoelectric PZT-G1195 plate due to an applied electric field \(E_{3}\) along the poling direction through the plate thickness (experimental data obtained from Crawley and Anderson16.
