Figure 4
From: Effective nonlinear responses of three-phase magnetoelectric composites

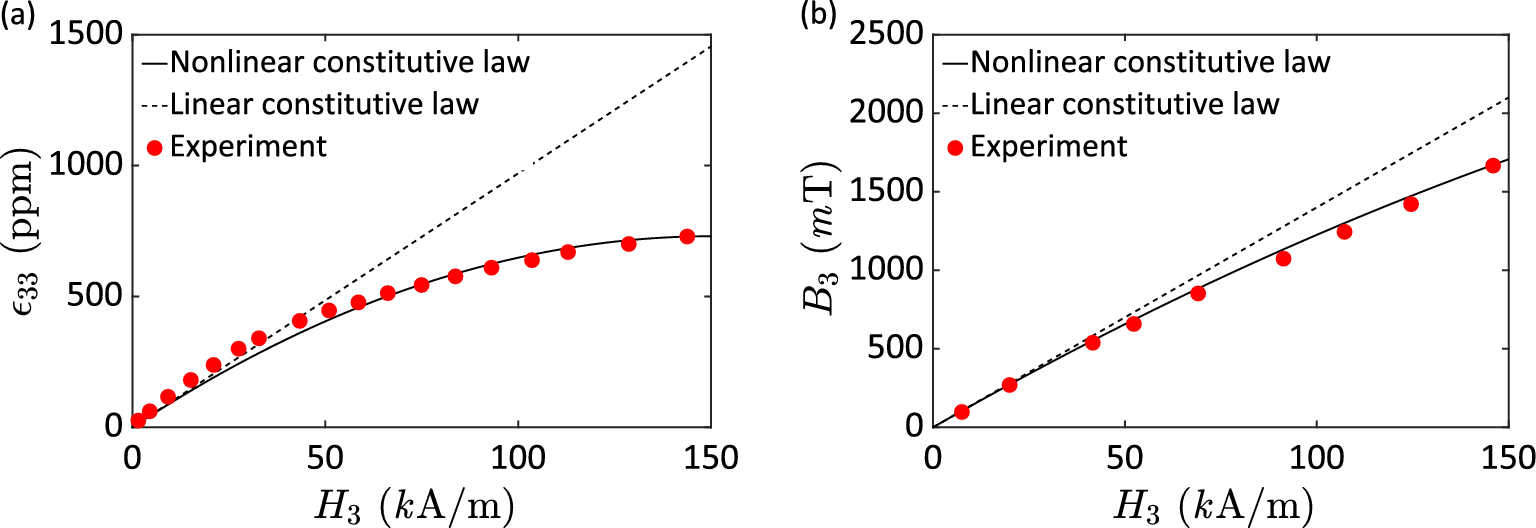

Strain (a) and magnetic flux density (b) responses of a stress-free magnetostrictive Terfenol-D rod due to an applied magnetic field (experimental data measured from a 20 kA/m bias field obtained from Jiles and Thoelke17.
