From: The natural history and genetic diversity of Haemophilus influenzae infecting the airways of adults with cystic fibrosis

Figure 2

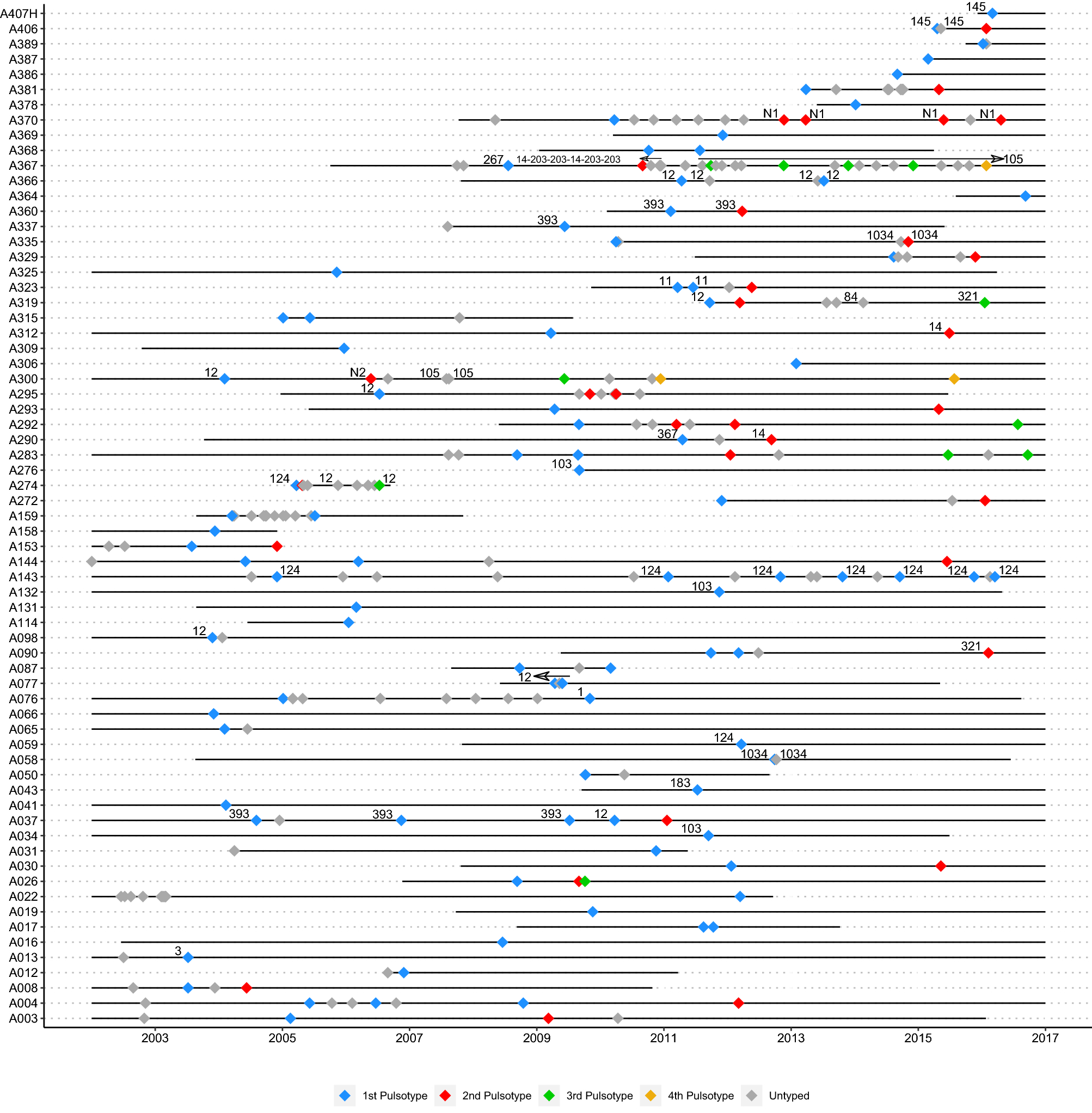

Timeline of pwCF with H. influenzae sputum isolated typed by PFGE. pwCF are represented on the Y-axis by patient ID (A###) and the X-axis represents study duration. Each diamond corresponds to a H. influenzae positive sputum culture. Colored diamonds represent cultures typed by PFGE, while grey diamonds represent untyped cultures. Colors correspond to sequential pulsotypes in each individual pwCF but have no meaning between pwCF. In most cases, untyped isolates represented serial isolates from patients in whom typed isolates provided a good indicator of strain diversity. STs of sequenced isolates (cultures) are labelled in black. Arrows indicate sequences of cultures belonging to indicated STs.
