Figure 6

From: Chromosomal microarray analyses from 5778 patients with neurodevelopmental disorders and congenital anomalies in Brazil

Figure 6

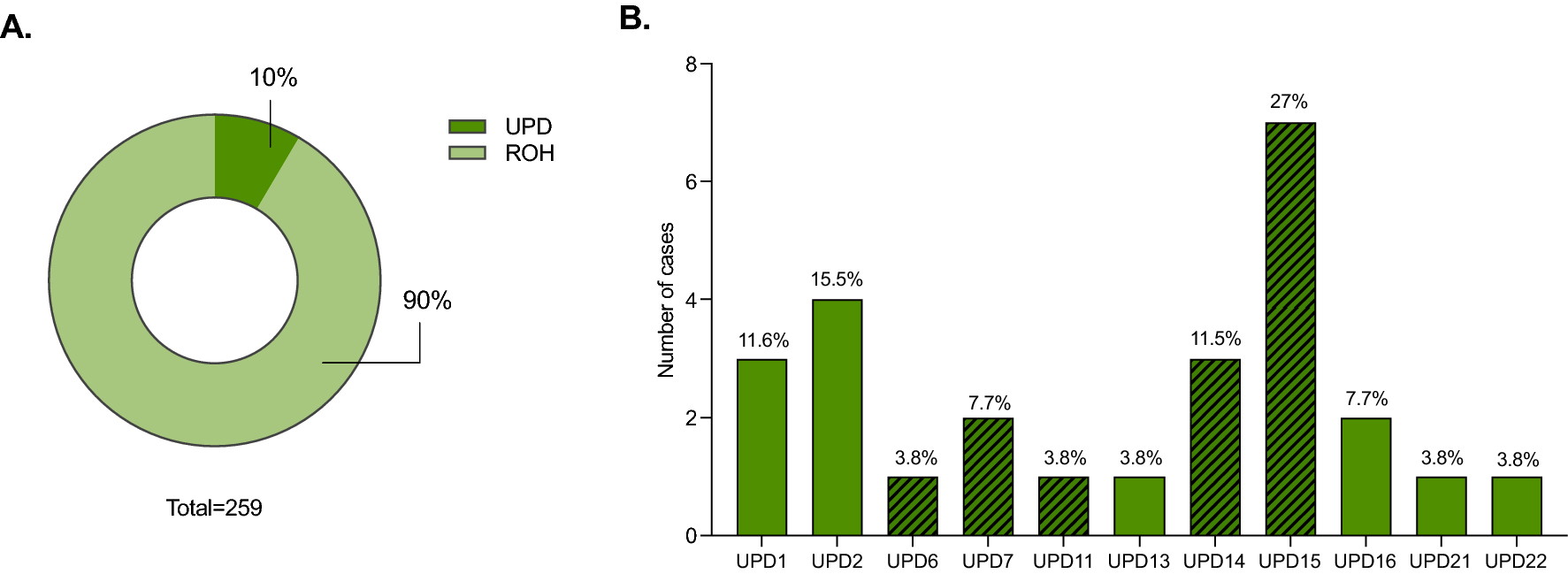

Frequency of copy neutral regions of homozygosity (ROH). (A) A total of 259 patients carried ROHs, 26 (10%) corresponding to uniparental disomy (UPD) cases. The remaining ROH in the other 233 patients (90%) were considered associated to different degrees of identity by descendent. (B) The histogram shows the frequency of UPDs per chromosome detected in our cohort. The crossed pattern represents pathogenic UPD known to encompass imprinting regions.
