Figure 6
From: Formation of polymorphs and pores in small nanocrystalline iron oxide particles

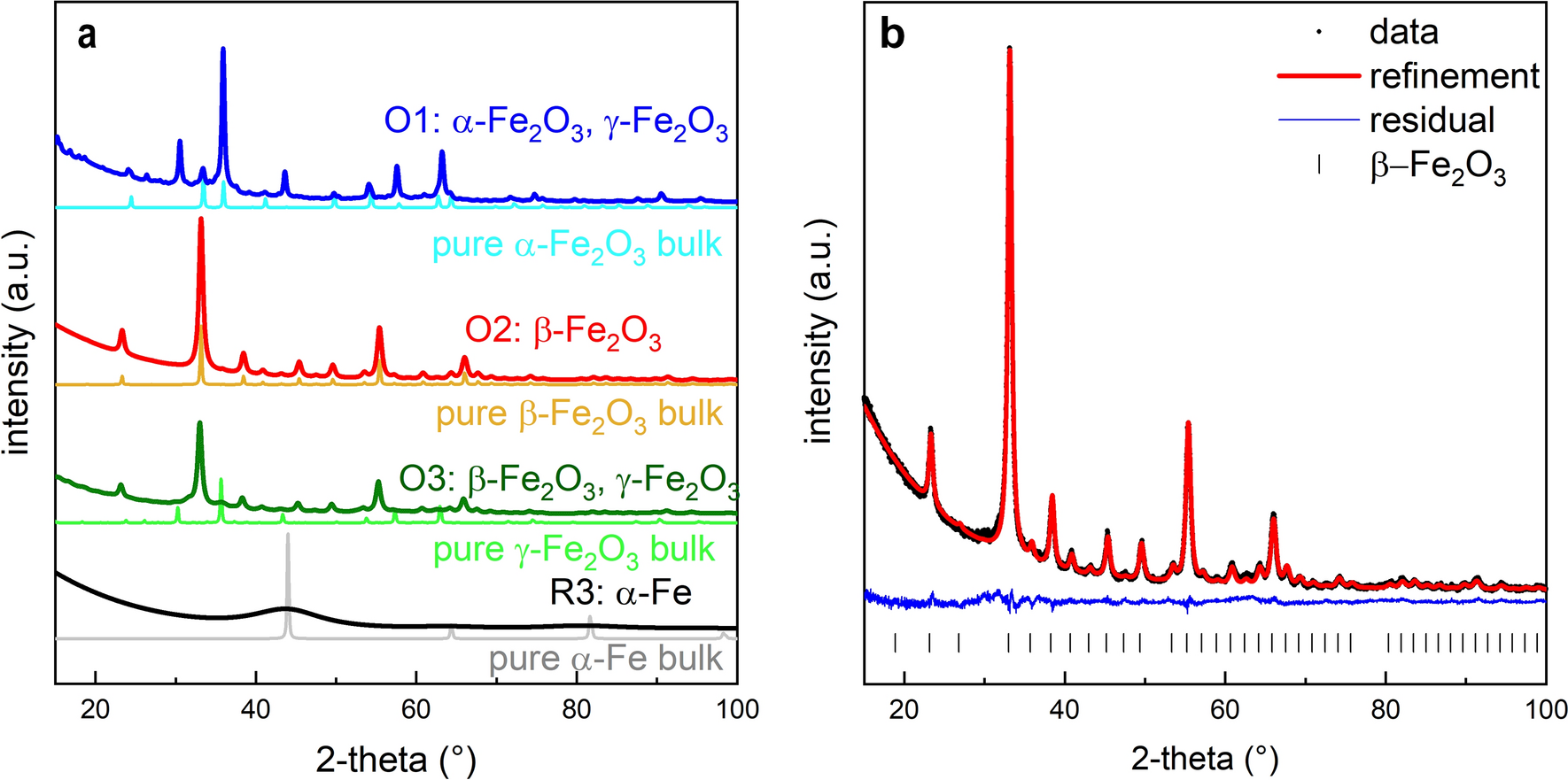

X-ray diffraction pattern of samples O1, O2, O3 and R3 (a), additionally diffraction pattern of corresponding pure phases are shown with only instrumental broadening included. The refined dataset for the O2 is displayed in (b) with residual signal and β-Fe2O3 reflex positions.
