Figure 1

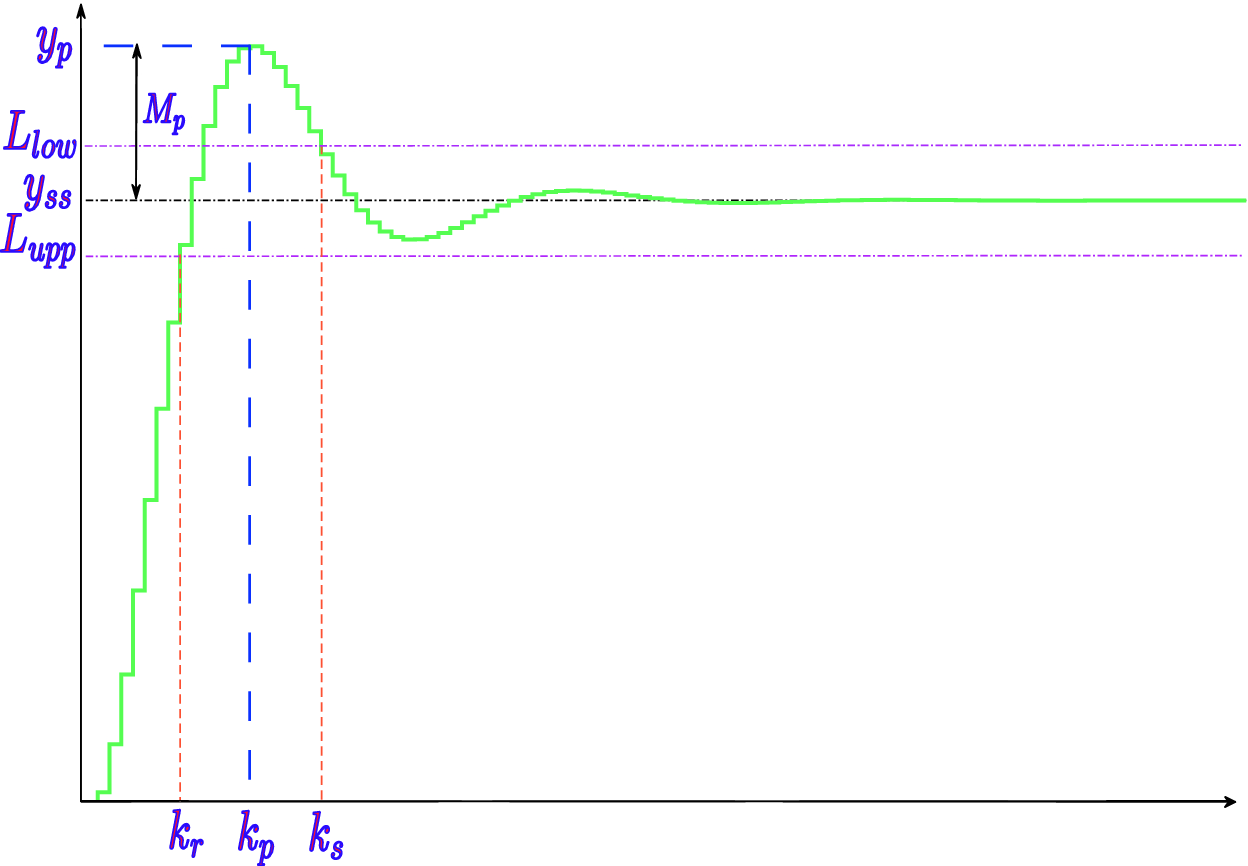

We illustrate the generic step response of a digital control system represented by Eq. (1), which emphasizes the settling time region bounded by \(L_{\mathrm {upp}}\) and \(L_{\mathrm {low}}\) and the maximum overshoot \(M_{\mathrm {p}}\) occurring at \(k_{\mathrm {p}}\).
