Figure 1

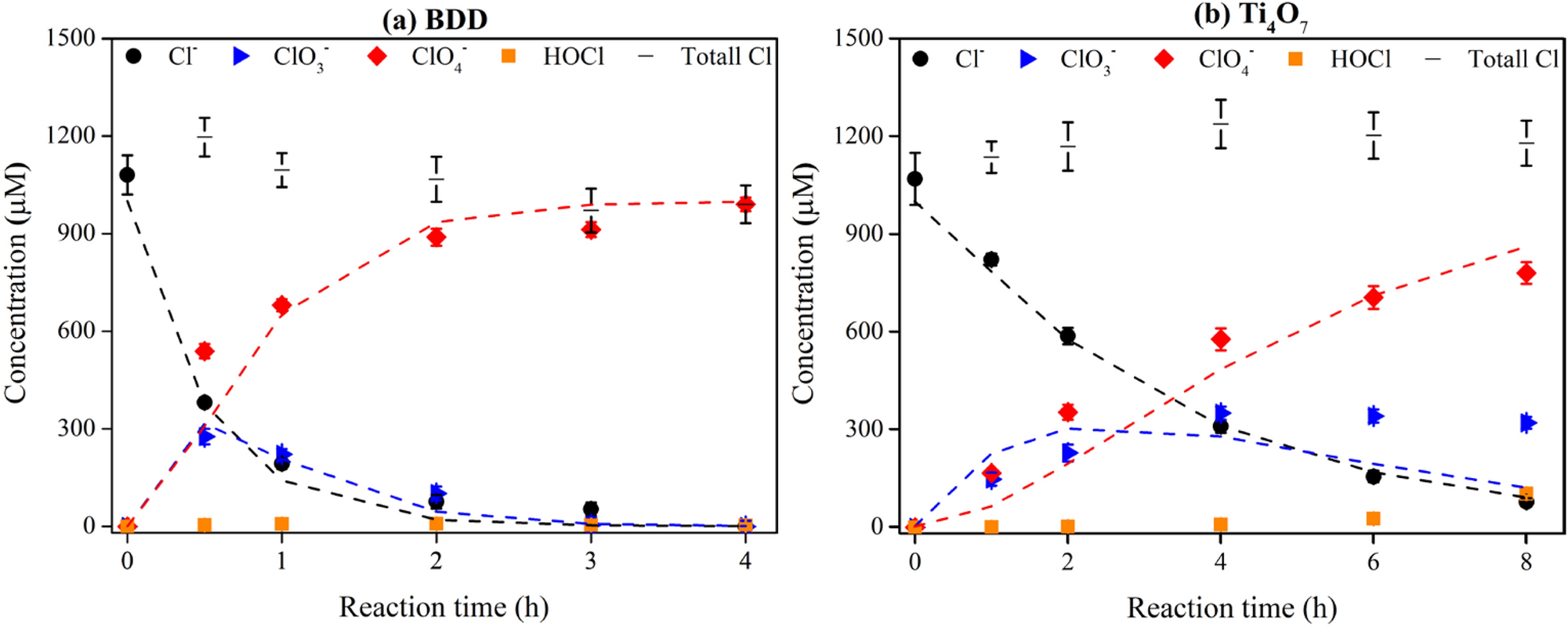

Comparison of chlorine species during the electrochemical oxidation of Cl− on different anodes. Dashed lines show simulated results. Conditions: [Cl−]0 = 1.0 mM, [Na2SO4] = 100 mM, current density = 10 mA cm-2.
Figure 1 | Scientific Reports
Comparison of chlorine species during the electrochemical oxidation of Cl− on different anodes. Dashed lines show simulated results. Conditions: [Cl−]0 = 1.0 mM, [Na2SO4] = 100 mM, current density = 10 mA cm-2.
