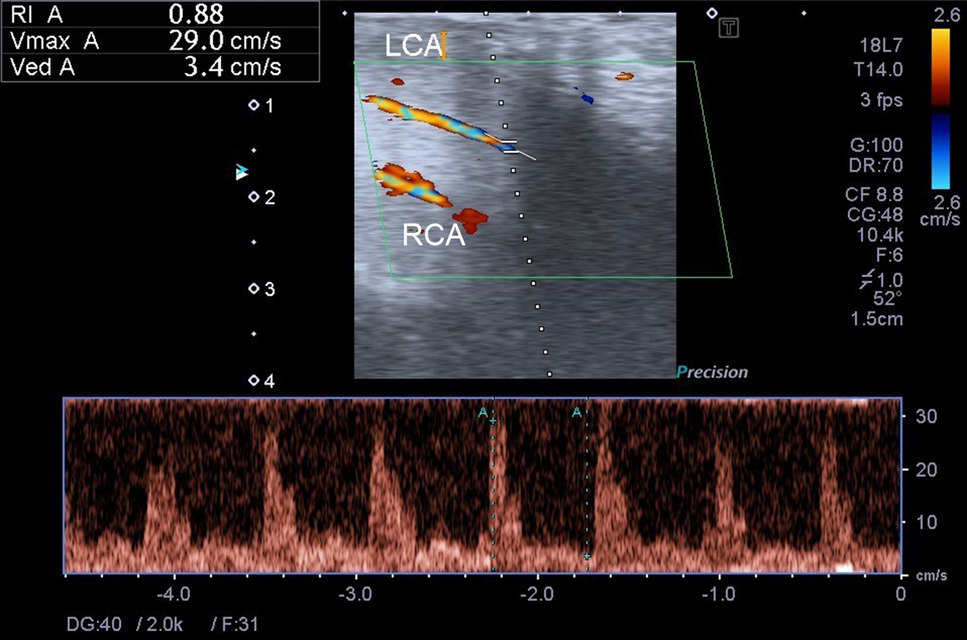

An example of dynamic duplex sonography of the penis. Both LCA and RCA are shown in this sonography. The hemodynamic parameters of the LCA are measured. The PSV (shown as Vmax A) is 29.0 cm/s, the EDV (shown as Ved A) is 3.4 cm/s, and the RI (shown as RI A) is 0.88. EDV: end-diastolic velocity, LCA: left cavernous artery, PSV: peak systolic velocity, RCA: right cavernous artery, RI: resistance index.
