Figure 1
From: The function of a conidia specific transcription factor CsgA in Aspergillus nidulans

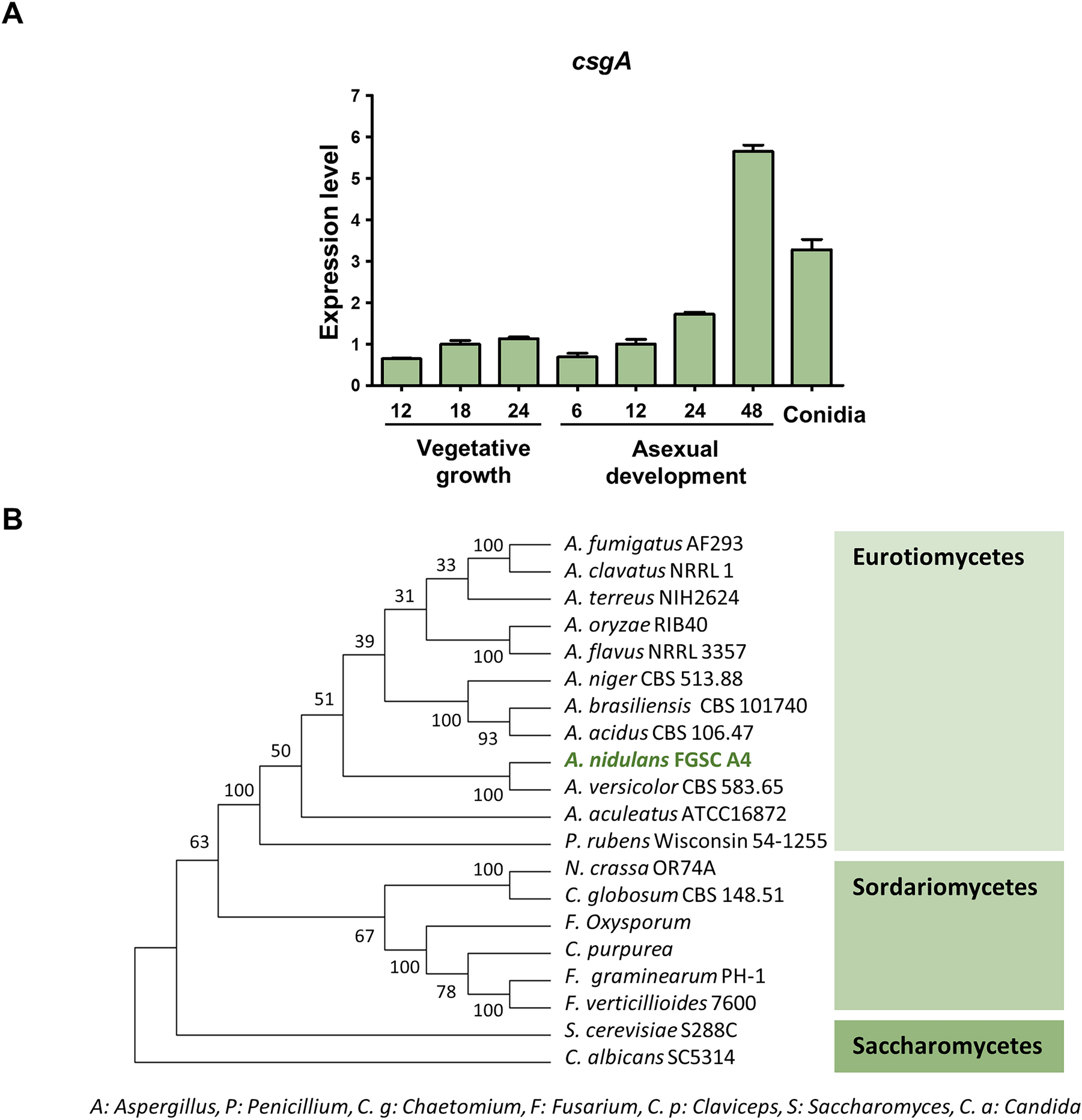

Summary of csgA evolution and expression. (A) Expression levels of csgA during the life cycle of A. nidulans measured by qRT-PCR. (B) Phylogenetic analysis of CsgA homolog proteins identified in ascomycota species, including A. fumigatus (XP_755373.1), A. clavatus (XP_001275339.1), A. terreus (XP_001213655.1), A. oryzae (XP_001826209.3), A. flavus (XP_041150305.1), A. niger (XP_001399754.2), A. brasiliensis (OJJ76189.1), A. acidus (OJZ92039.1), A. nidulans (XP_663559.1), A. versicolor (XP_040666950.1), A. aculeatus (XP_020060042.1), Penicillium rubens Wisconsin (XP_002565962.1), Neurospora crassa (KHE82752.1), Chaetomium globosum (XP_001223925.1), Fusarium oxysporum (EXA29503.1), Claviceps purpurea (KAG6216579.1), F. graminearum (XP_011323014.1), F. verticillioides (XP_018761247.1), Saccharomyces cerevisiae (NP_013199.1), and Candida albicans (XP_019330616.1).
