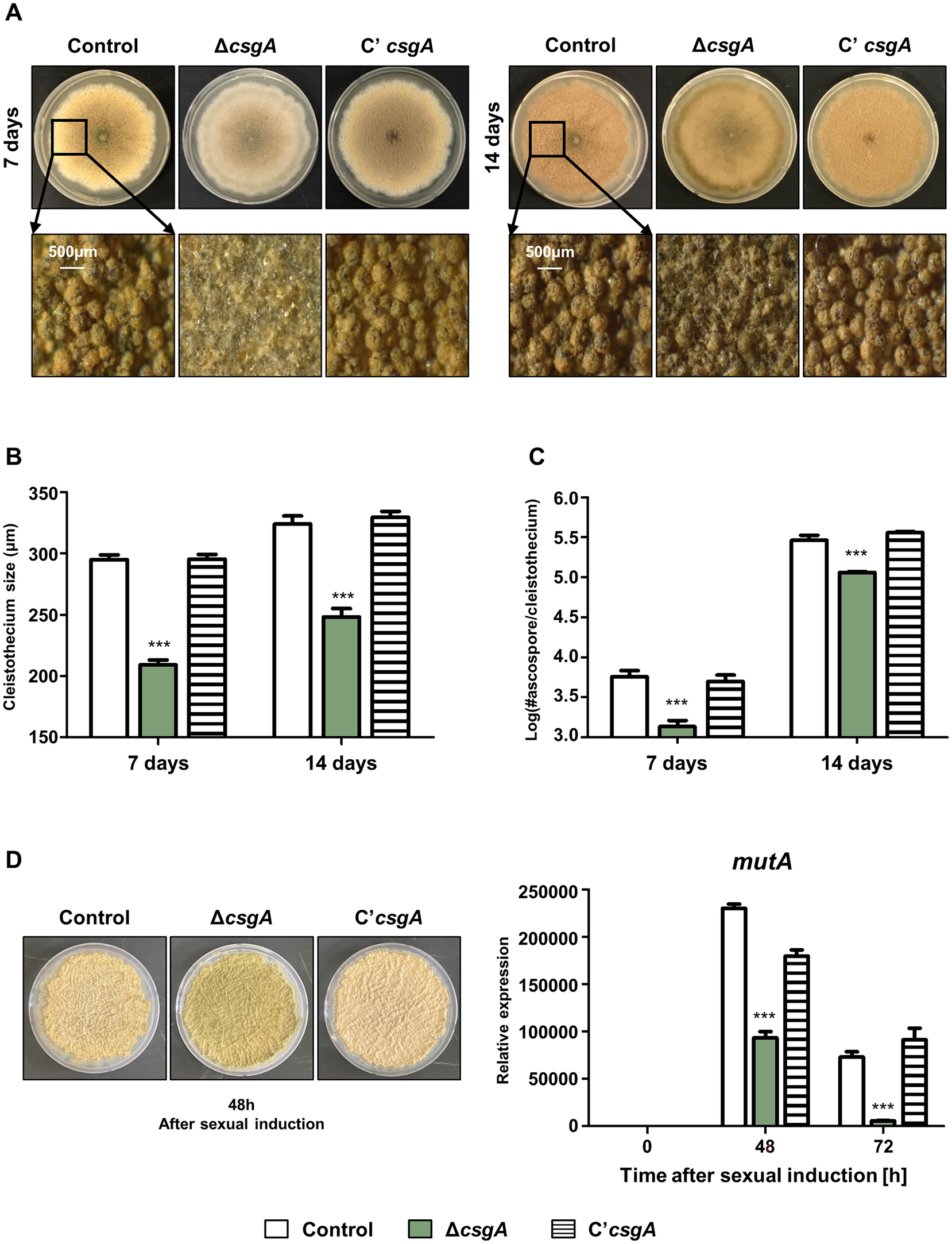

Figure 3
From: The function of a conidia specific transcription factor CsgA in Aspergillus nidulans
The roles of csgA in sexual development. (A) Colony photographs of control (TNJ36), ΔcsgA (THJ13.1), and C'csgA (THJ28.1) strains point-inoculated on solid SM and grown for 7 days and 14 days at 37 °C in dark condition. (B) Sizes of a single cleistothecium from each strain shown in (A). (C) Germination of ascospores from each strain. (D) Left, colony photographs of each strain at 48 h after sexual induction. Right, qRT-PCR analyses of mutA expression in each strain. ***p < 0.001.
