Figure 1 | Scientific Reports

Figure 1

From: Development and verification of an immune-related gene prognostic index for gastric cancer

Figure 1

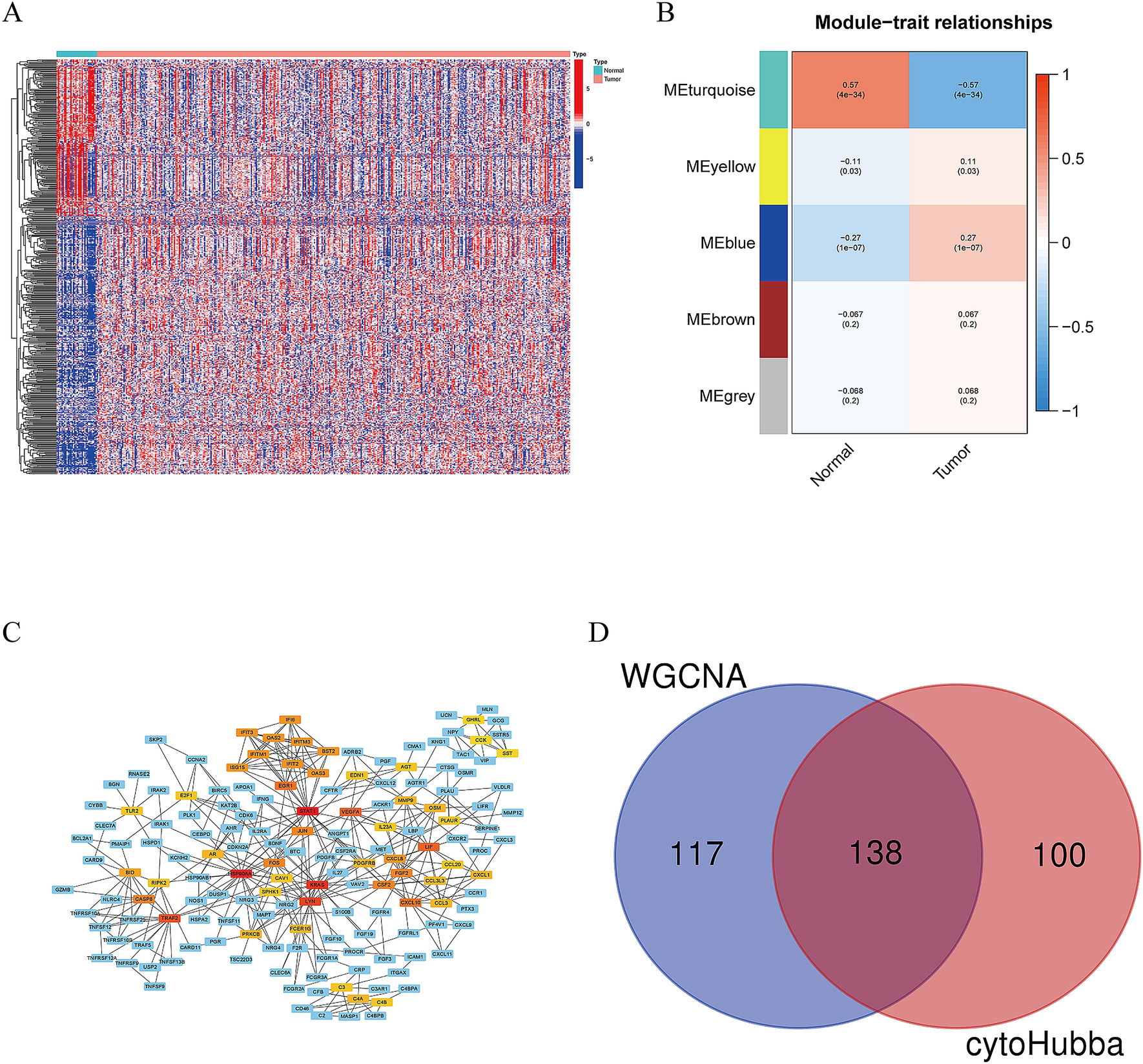

Selection of immune-related genes. (A) Heatmap showing differential immune-related gene expression between normal and gastric cancer tissues (B) Heatmap of the correlation between normal and tumor tissues on module genes. (C) PPI network diagram of immune hub genes. (D) Venn diagram shows the immune-related genes. [Figures created by R, version 4.0.4. STRING, https://string-db.org/; Cytoscape (https://cytoscape.org/; version 3.9.1)].
