Figure 6
From: Atmospheric muography for imaging and monitoring tropic cyclones

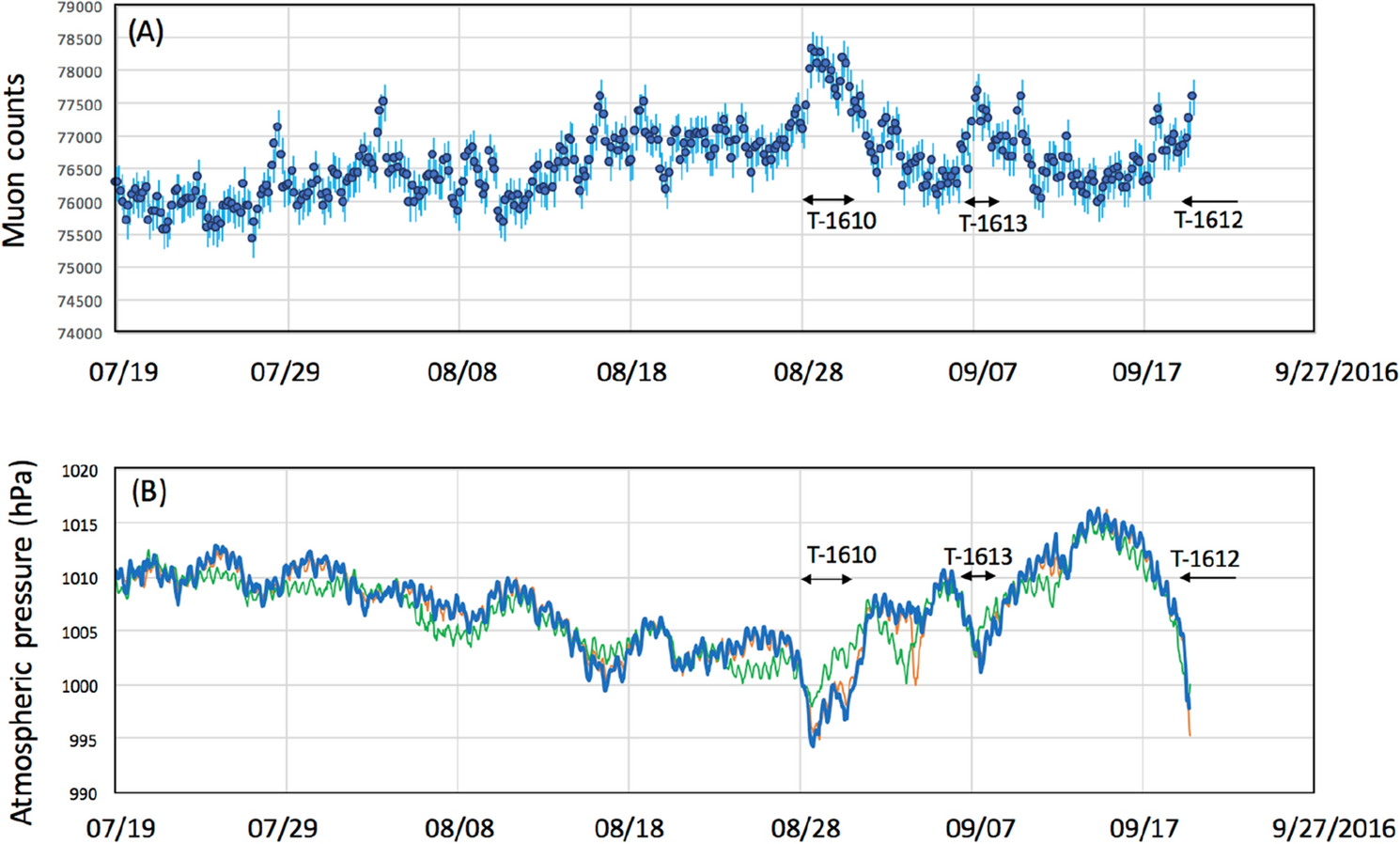

Observed time-dependent variations of the muon count rate in the 2016 typhoon season (A). The atmospheric pressure values observed at three BP monitoring stations of Kagoshima (blue), Yakushima (Orange) and Naze (Green)48 are shown (B). The vertical bars associated with the data points indicate 1σ error bars. Arrows indicate the period that T1610, T1612, and T1613 are added. T1616 is out of the range of the current measurement.
