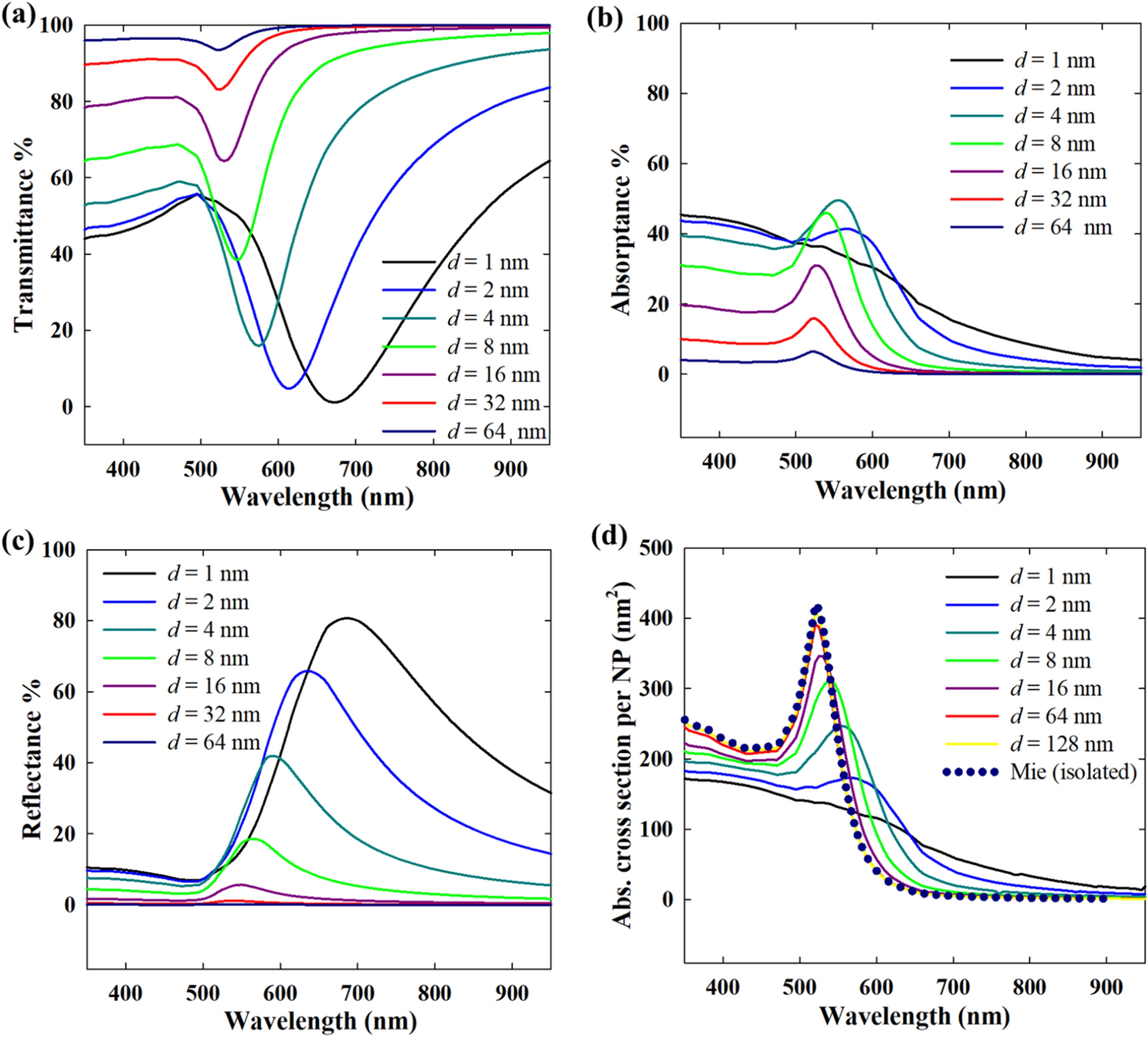

Figure 4

Effect of interparticle gap (d) in monolayer hexagonal close packed arrays of 20 nm Au nanoparticles in dielectric medium (n = 1.33): (a) transmittance, (b) absorptance, (c) reflectance, (d) per particle absorption cross section. The direction of incidence of illumination is normal in all cases.
