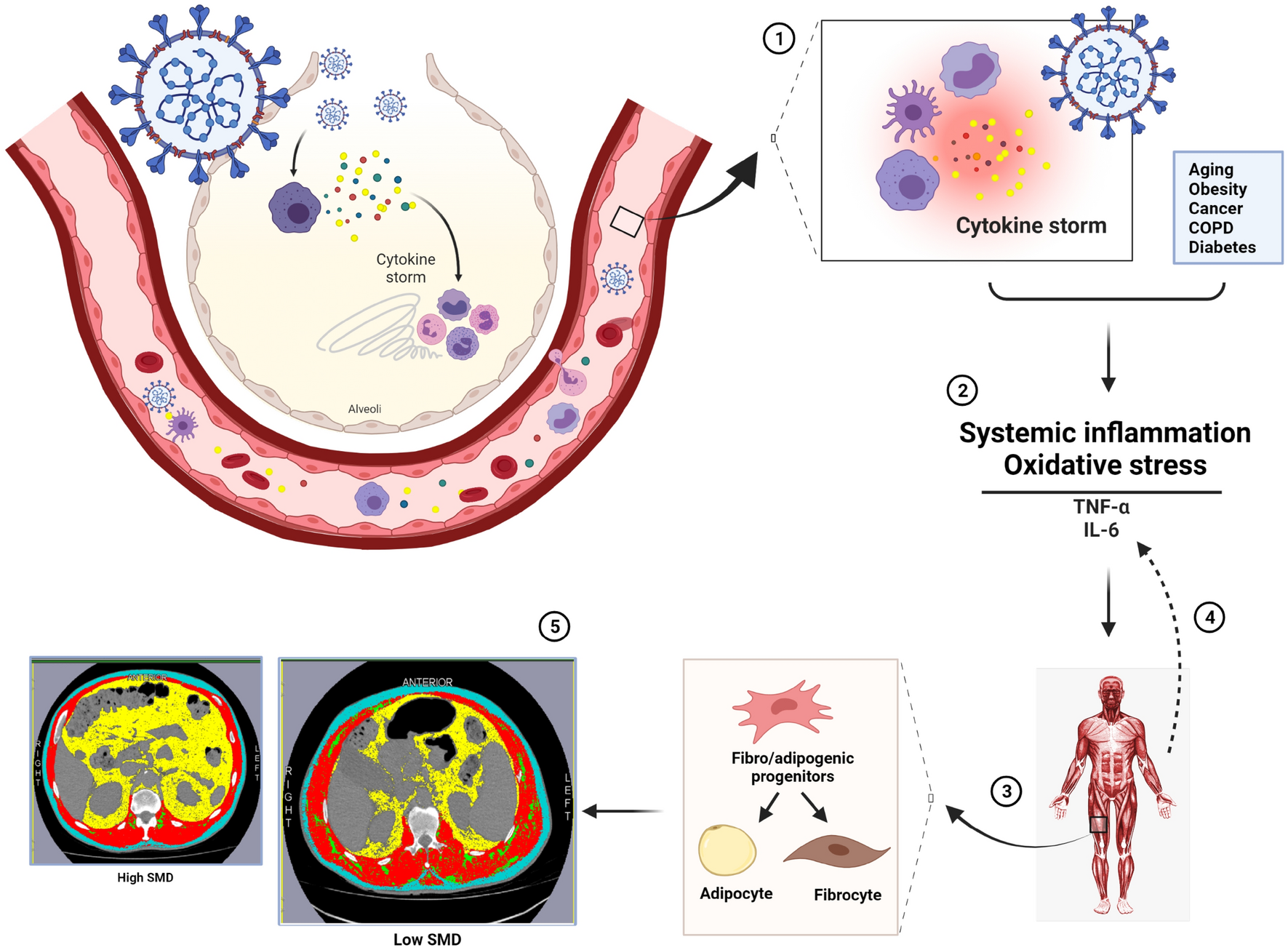

Proposed pathophysiology for low muscle radiodensity in COVID-19. 1. COVID-19 infection and increased inflammatory response (cytokine storm); 2. Systemic inflammation and oxidative stress due to COVID-19 and underlying comorbidities with high levels of circulating cytokines (e.g., IL-6 and TNF-α) and high NLR; 3. Fibro-/adipogenic progenitors in skeletal muscle differentiate into fibrocytes and adipocytes; 4. Myositis increases cytokine release; and 5. Increase in intramuscular adipose tissue leading to low SMD. Abbreviations: COPD: Chronic obstructive pulmonary disease; IL-6: Interleukin 6; NLR: Neutrophil‐to‐lymphocyte ratio; SMD: Skeletal muscle radiodensity; TNF-α: Tumor necrosis factor alpha.
