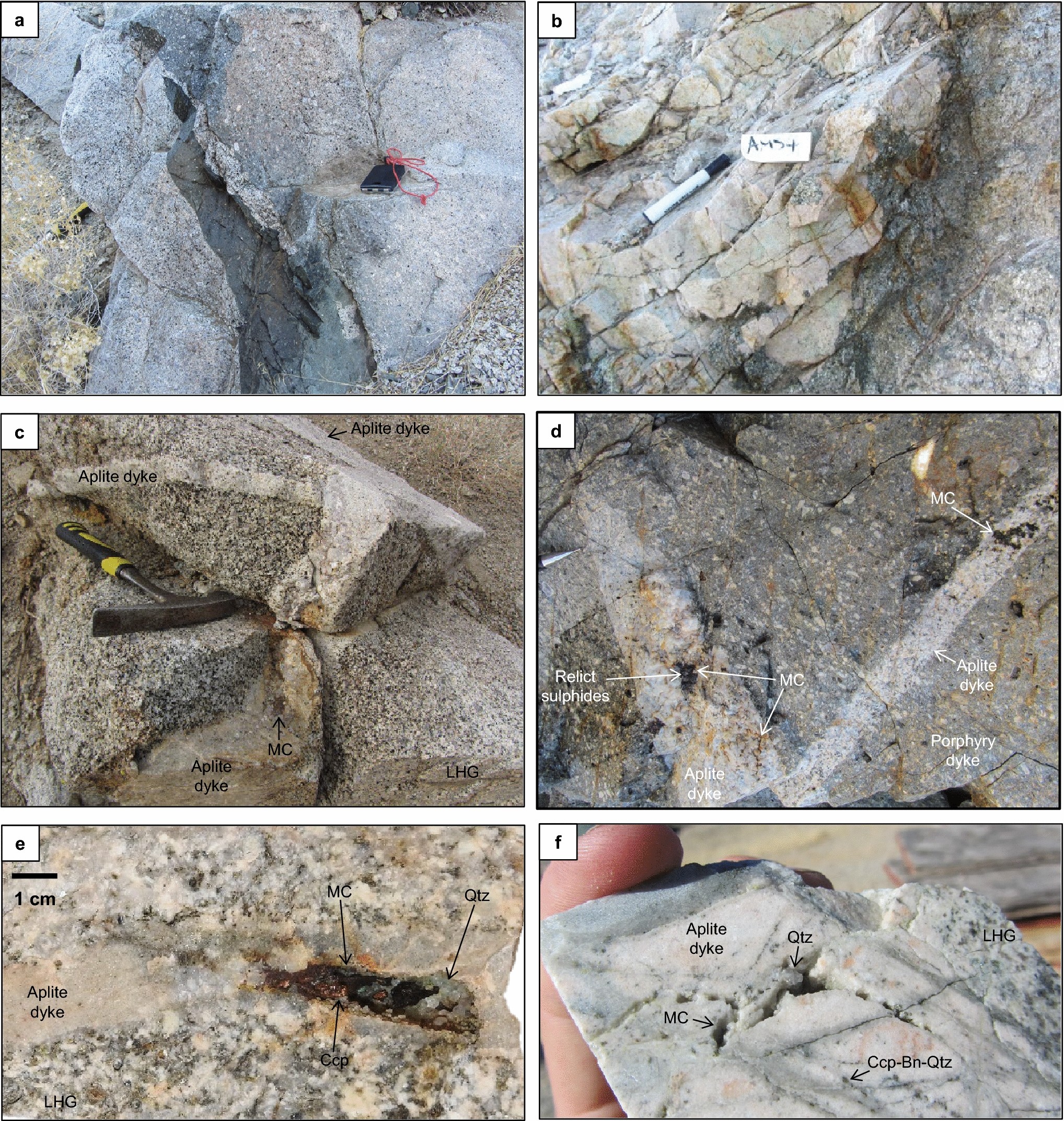

Figure 3

Temporal relations in the Yerington magmatic system: Field photographs of; (a) cross-cutting relations of multiple porphyry dyke generations which cut the LHG cupola; (b) lobate contacts and evidence for mingling of co-eval magmas between an aplite dyke and porphyry dyke. Secondary copper staining prevalent in the aplite dyke; (c, d) multiple generations of aplite dykes hosting pegmatitic segregations and mineralised miarolitic cavities (MC). The aplite dykes sharply cross-cut the cupola zone of the LHG and a porphyry dyke. Both the aplite and porphyry dykes lie palaeo-vertically beneath the Ann Mason porphyry deposit; (e) cupola zone of LHG cut by an aplite dyke hosting a chalcopyrite (Ccp) mineralised miarolitic cavity. This aplite dyke is sample AM13BAP in Fig. 4. Qtz = quartz; (f) drill core from the Ann Mason porphyry deposit showing LHG cut by an aplite dyke hosting miarolitic cavities and early chalcopyrite-bornite-quartz (Ccp-Bn-Qtz) (‘A-type’, nomenclature after⁵¹) veins, which locally truncate at the dyke’s margin. (e, f) from³³.
