Figure 4
From: Towards a digital twin for supporting multi-agency incident management in a smart city

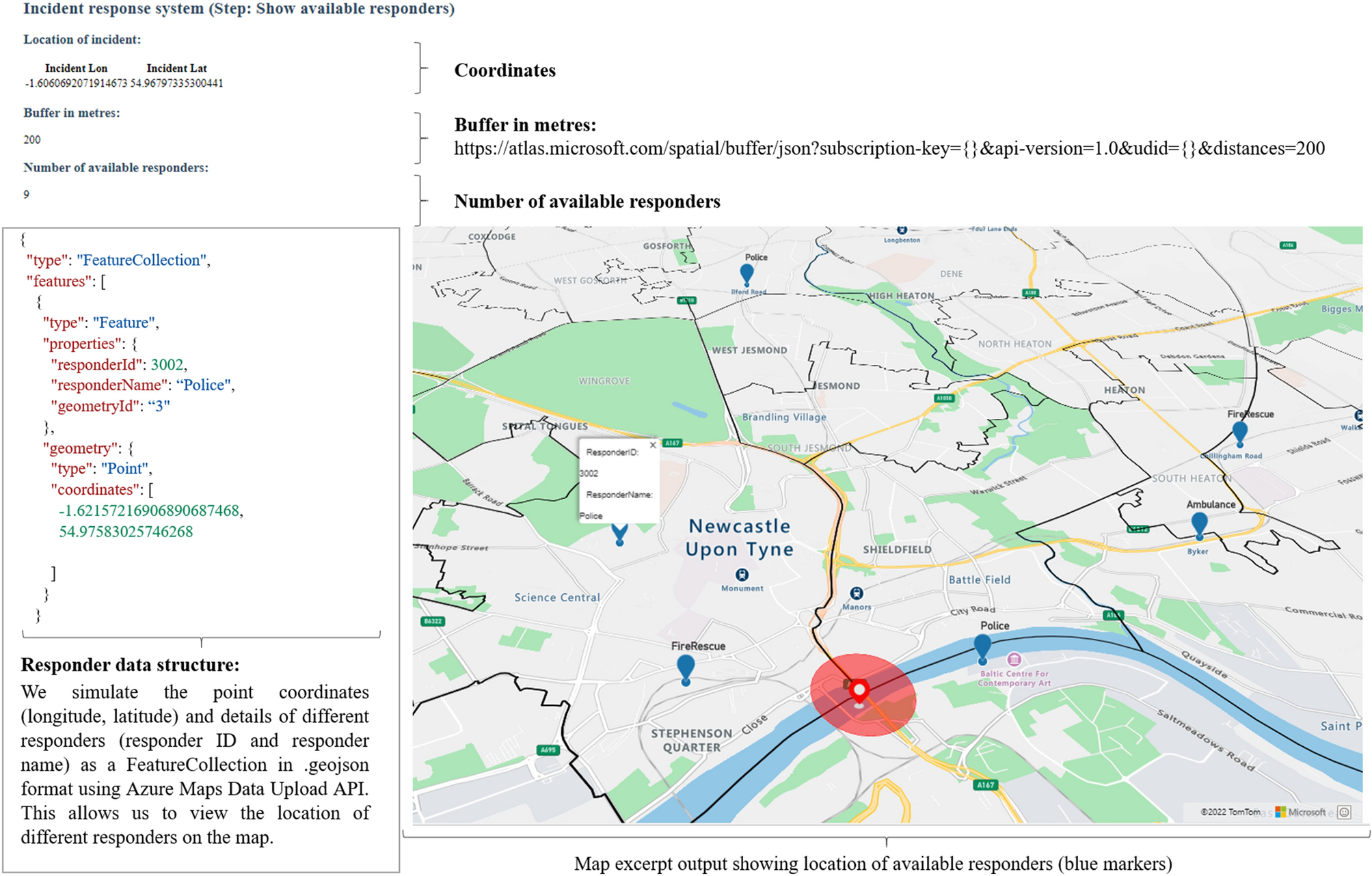

Incident process step 3: View location of available responders (own figure). The web application shows the indicators: Location of incident (longitude, latitude); buffer in metres; and the number of available responders. The code excerpt displays a .geojson file containing the information for a simulated responder (responder ID, responder name, longitude and latitude coordinates). The map output visualises the location of the incident on the Tyne Bridge with a red marker and the location of available responders with blue markers. KW created the map output using the Microsoft Azure Maps Web Software Development Kit and TomTom (© 2022) base map data (a subscription key to use the data can be obtained after registering on the Azure Maps platform for Geospatial Mapping APIs under https://azure.microsoft.com/en-us/services/azure-maps/#azuremaps-overview). The code for the web application was developed in JavaScript, CSS and HTML in the Microsoft Visual Studio Code integrated development environment (version 1.70.2) and Node.js (version 16.13.2) on a Windows NT 64-bit operating system (×64-based processor)40.
