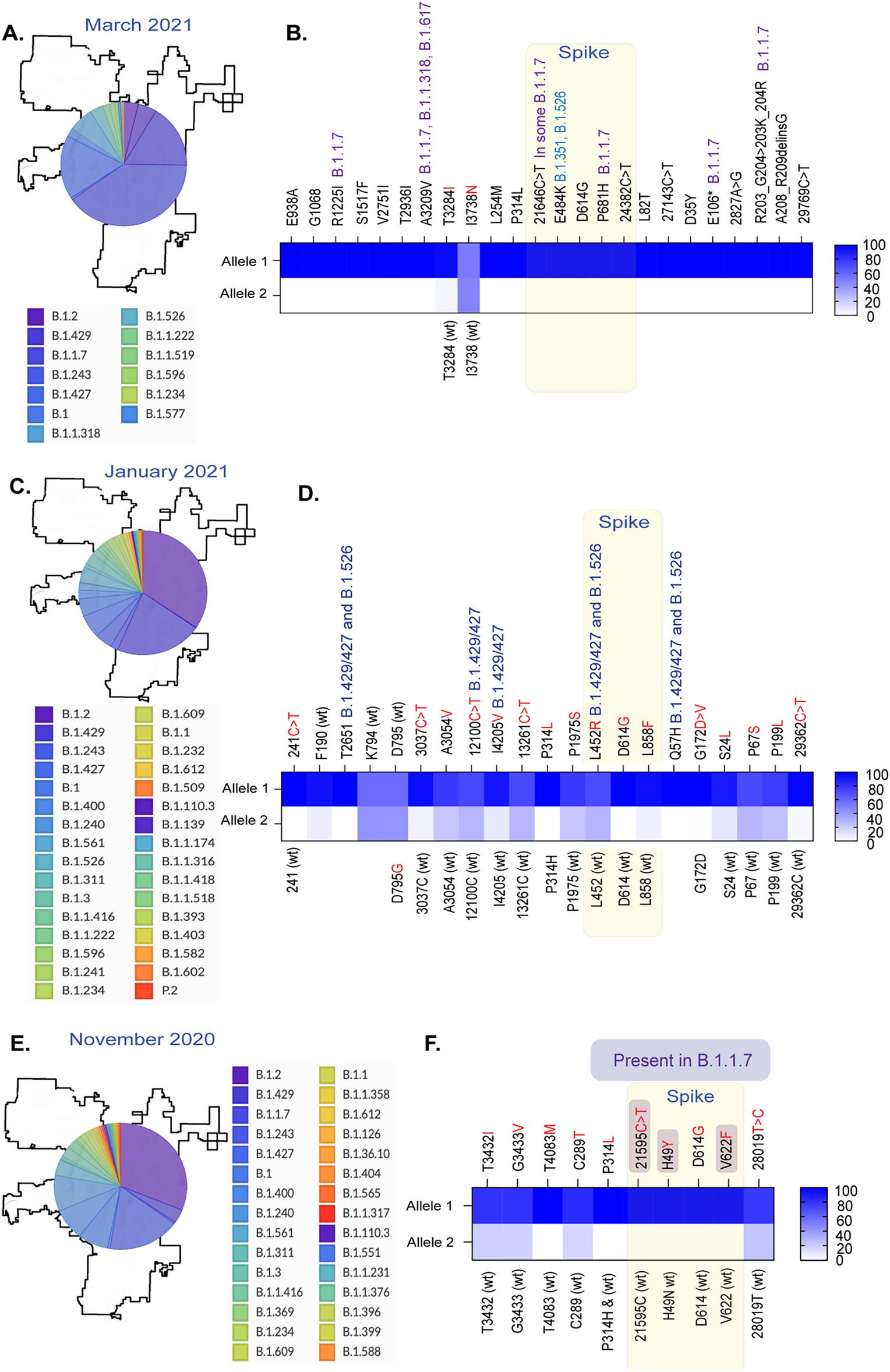

Figure 5

Detection of SARS-CoV-2 variants specific signatures in wastewater and their correlation with circulating variants identified through individual level testing for three months. (A) Relative abundance of SARS-CoV-2 variants in the Washoe county detected through individual level testing during March 2021. (B) Variant defining mutations of the SARS-CoV-2 genome detected in the wastewater during March 2021. (C) Relative abundance of SARS-CoV-2 variants in the Washoe county detected through individual level testing during January 2021. (D) Variant-defining mutations of the SARS-CoV-2 genome detected in the wastewater during January 2021. (E) Relative abundance of SARS-CoV-2 variants in the Washoe county detected through individual level testing during November 2020. (F) Variant defining mutations of the SARS-CoV-2 genome detected in the wastewater during November 2020. Figure generated using NextStrain (https://nextstrain.org)²⁰.
