Figure 11
From: Decontamination of water co-polluted by copper, toluene and tetrahydrofuran using lauric acid

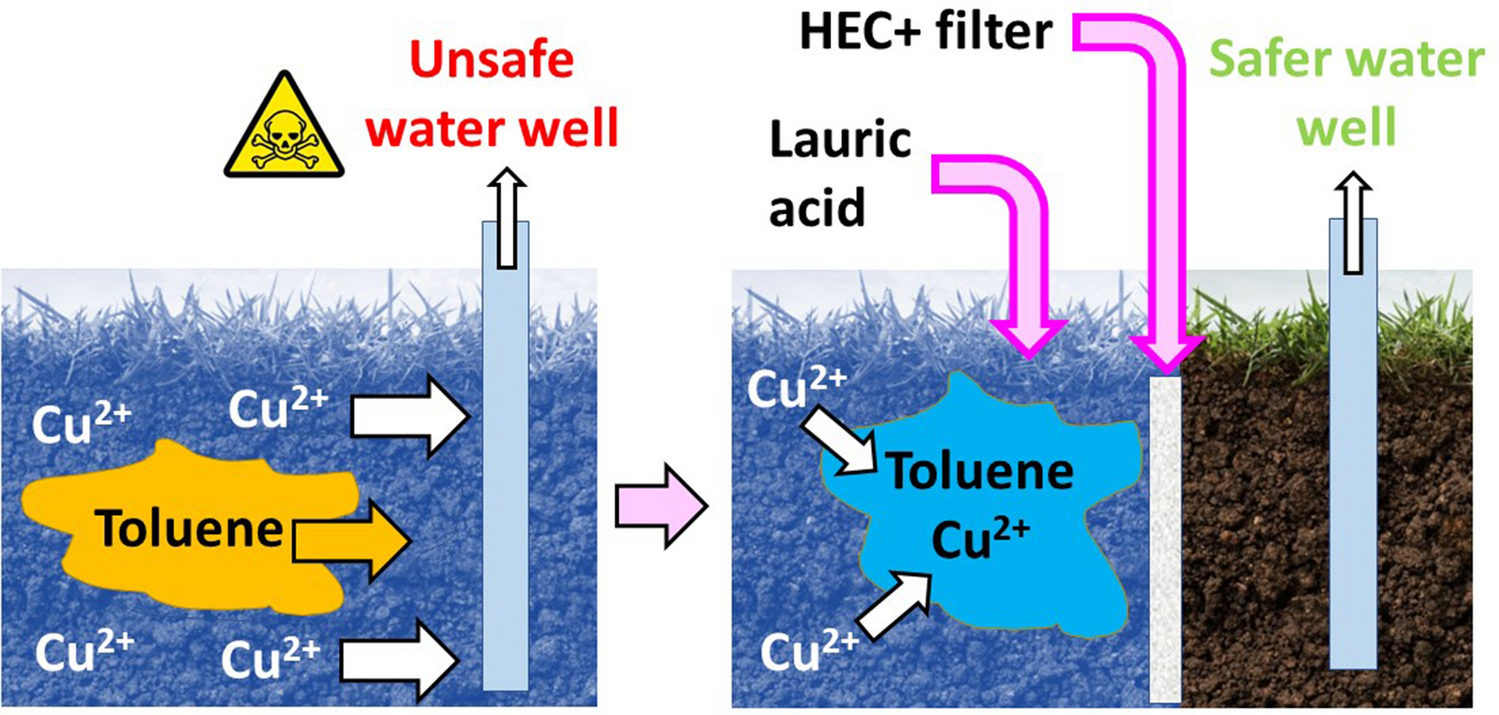

Schematics of the proposed approach, which combines HEC + injectable filters and lauric acid to simultaneously prevent copper ion and toluene migration. Once the flow of toluene and copper is arrested upstream of the filters, these contaminants can be extracted from the aquifer (e.g., using a pumping well). Note that while HEC + filters retain toluene in which Cu2+ partitions, they allow water flow. Also note that while mixing lauric acid in canola oil is required to enable its injection in polluted aquifers, lauric acid can be introduced in wastewater to be treated at the surface in its dry form (e.g., as a powder).
