Figure 6
From: Pathogenome comparison and global phylogeny of Escherichia coli ST1485 strains

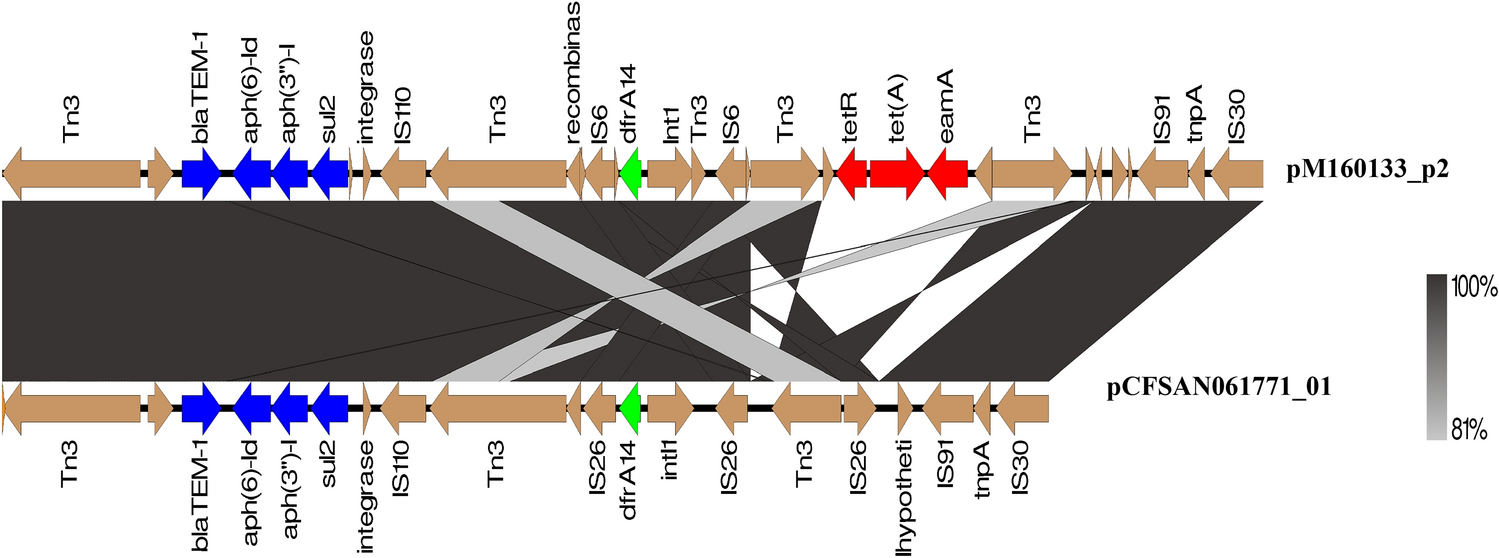

Linear maps of the multidrug resistance regions of pCFSAN061771_01 and pM160133_p2. Antimicrobial resistance genes are shown in red, green and blue. Mobile elements are shown in brown. Homologous segments with ≥ 99% sequence identity are indicated by black shading, while gray shading shows inverted homologous segments.
