From: Evaluation of the metabolomic profile through 1H-NMR spectroscopy in ewes affected by postpartum hyperketonemia

Figure 1

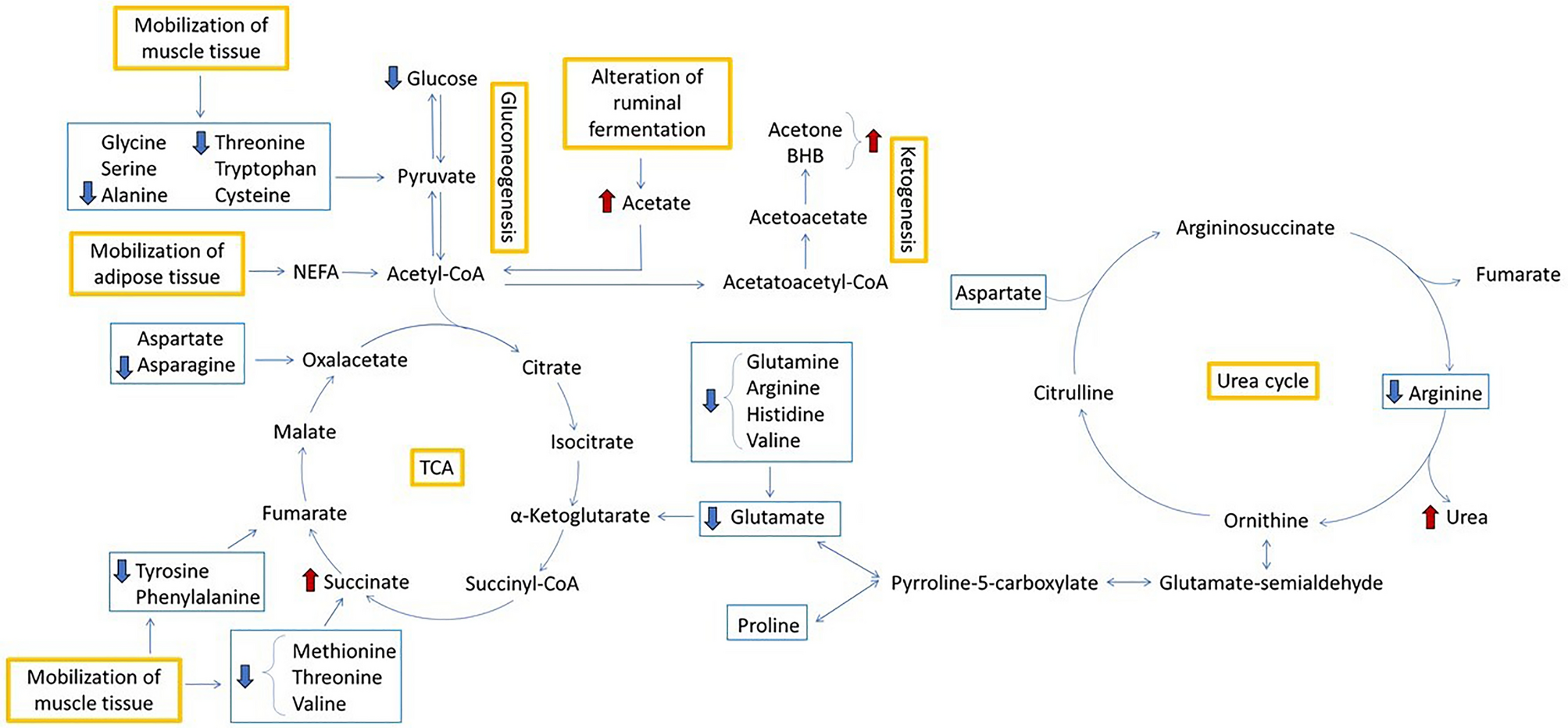

Metabolites changes in group HYP (n = 18; BHB ≥ 0.80 mmol/L) related to tricarboxylic acid cycle (TCA) and urea cycle. Blue rectangles are used to identify amino acids and orange rectangles are used to identify metabolic processes; blue arrows indicate a decrease in metabolite concentration while red arrows indicate an increase in concentration.
