Figure 2
From: Study on protective performance and gradient optimization of helmet foam liner under bullet impact

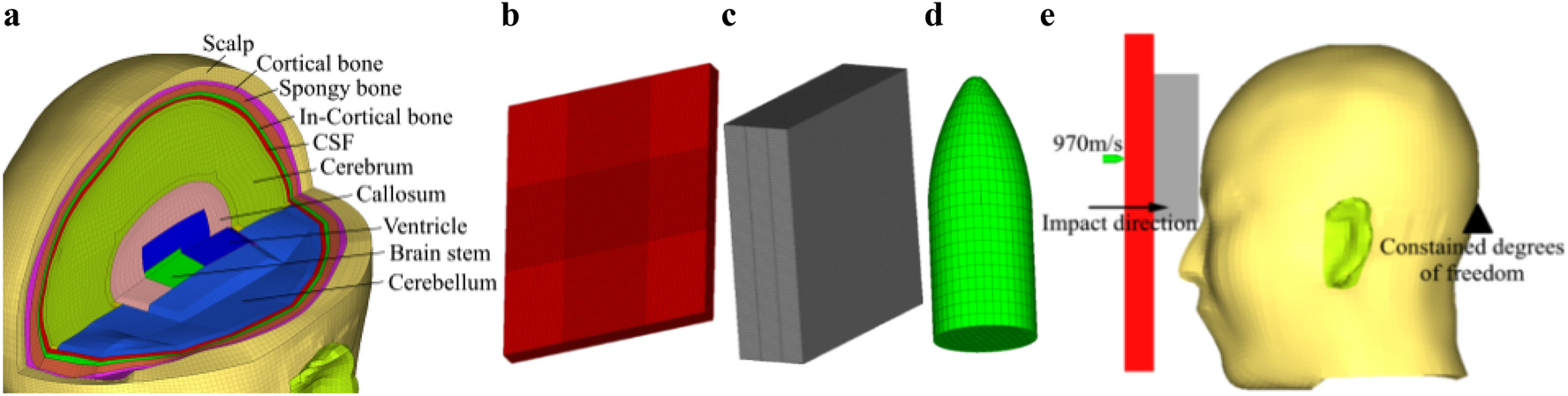

Finite element model. (a) Head finite element model (Image was processed by Microsoft Office PowerPoint 2010). (b) Bulletproof plate finite element model. (c) Cushion foam finite element model. (d) Bullet finite element model. (e) Impact model (Image was processed by Microsoft Office PowerPoint 2010).
