Figure 11
From: An enduring in vitro wound healing phase recipient by bioactive glass-graphene oxide nanocomposites

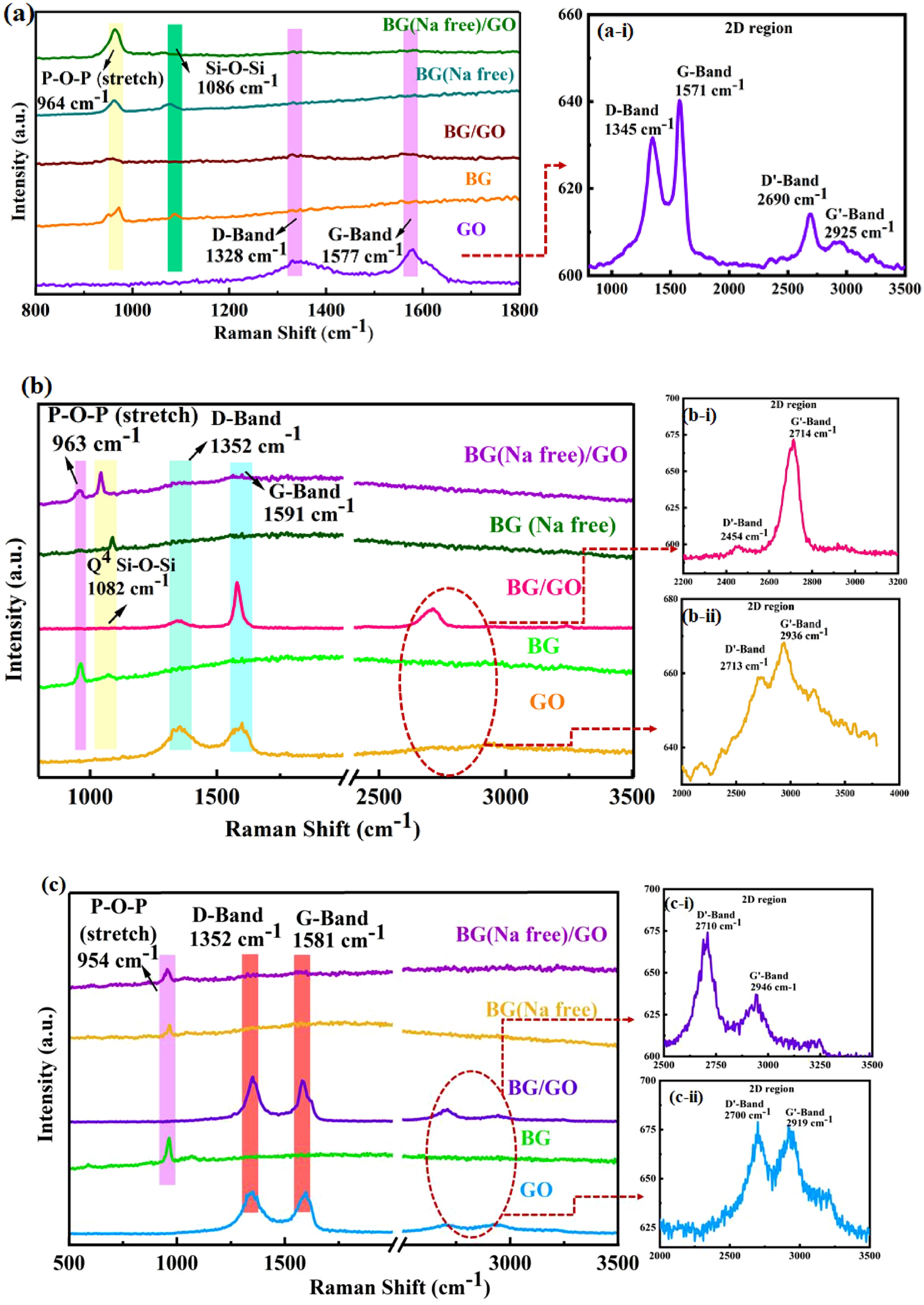

Raman spectra of BG, BG (Na-free), GO and BG/GO, BG (Na-free)/GO nanocomposites after mineralization; (a) 1st day; (a-i) 2D-region of GO, (b) 14th day; (b-i,b-ii) 2D-region of BG/GO and GO, (c) 28th day; (c-i,c-ii) 2D-region of BG/GO and GO.
