Figure 11
From: Switchable edge-line coupler based on parity time-reversal duality symmetry

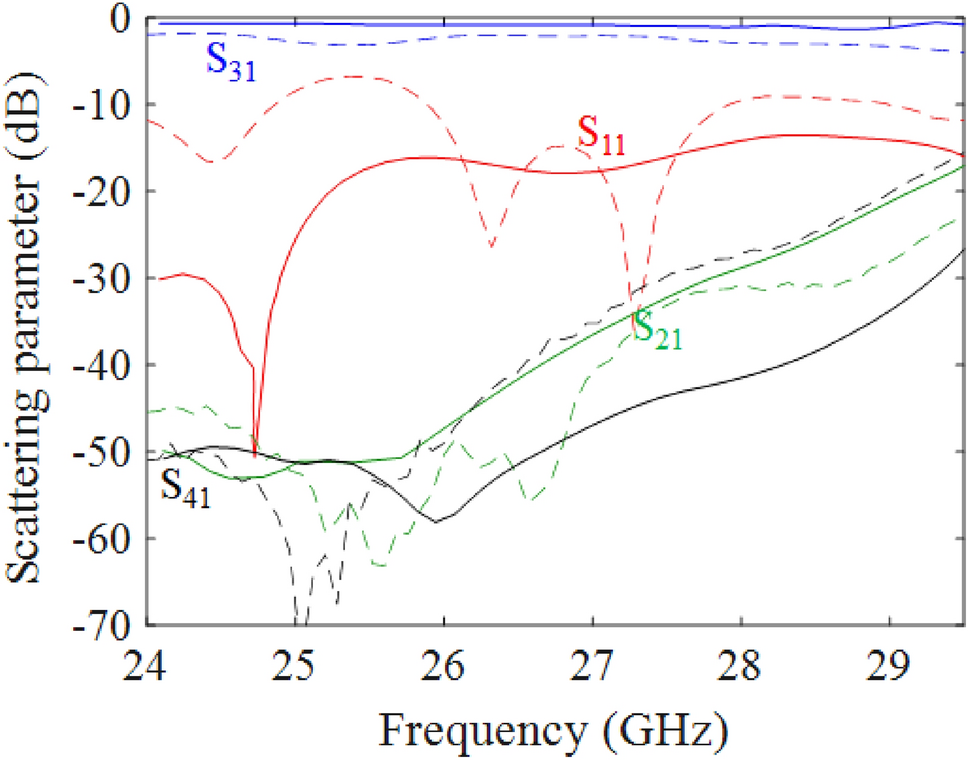

Simulated (continuous lines) and measured (dashed lines) scattering parameters of the PTD-Symmetric ELC using grounded-coplanar waveguide substrate-integrated waveguide transition for excitation at Port 1.
