Figure 4
From: Switchable edge-line coupler based on parity time-reversal duality symmetry

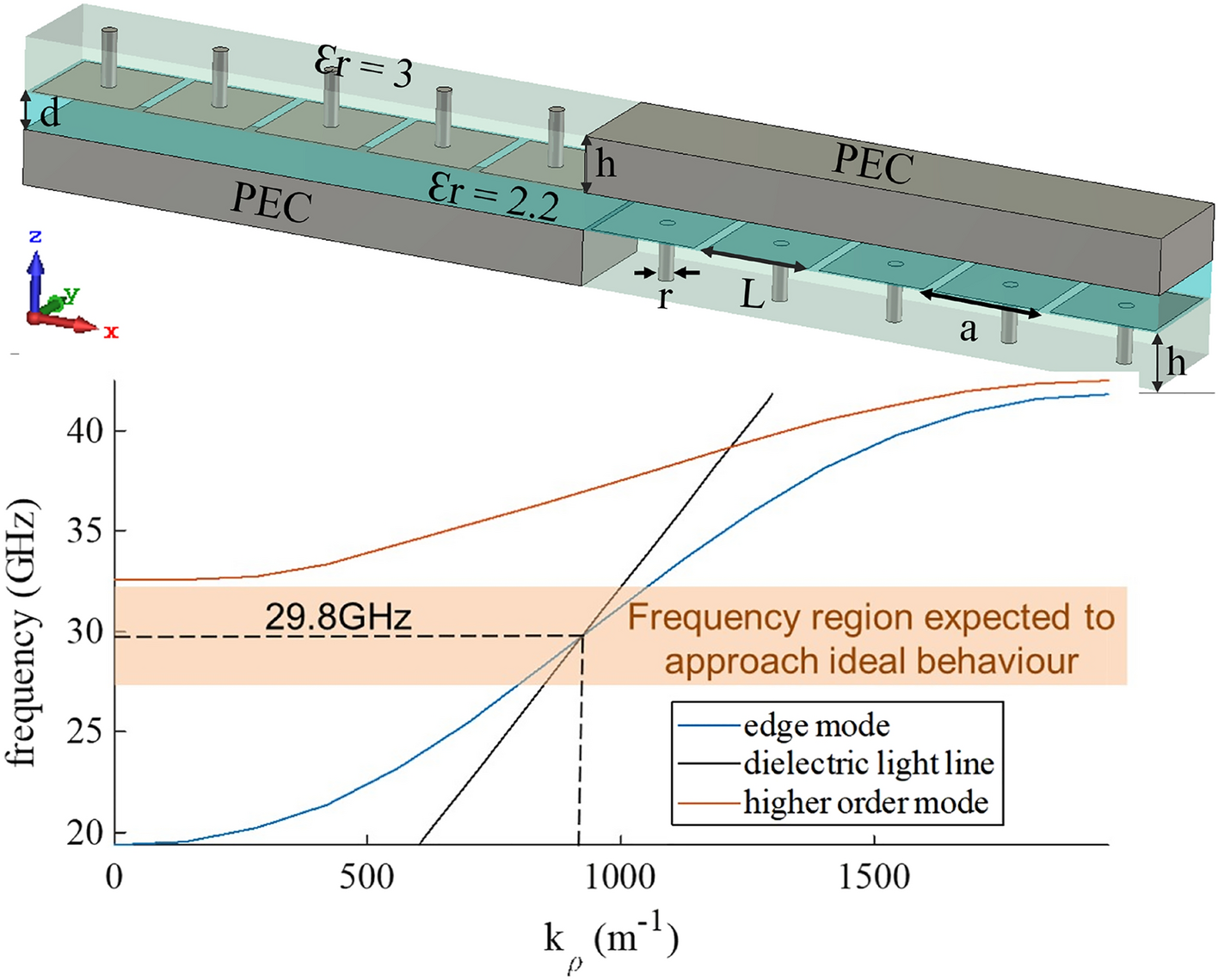

Geometry for the unit cell of the PTD-symmetric BEL and relevant dispersion diagram. The crossing point between the edge mode dispersion curve and the light line in the filling dielectric corresponds to the central operating frequency, where the mushroom metasurface behaves like a PMC.
