Figure 22
From: Microwave brain imaging system to detect brain tumor using metamaterial loaded stacked antenna array

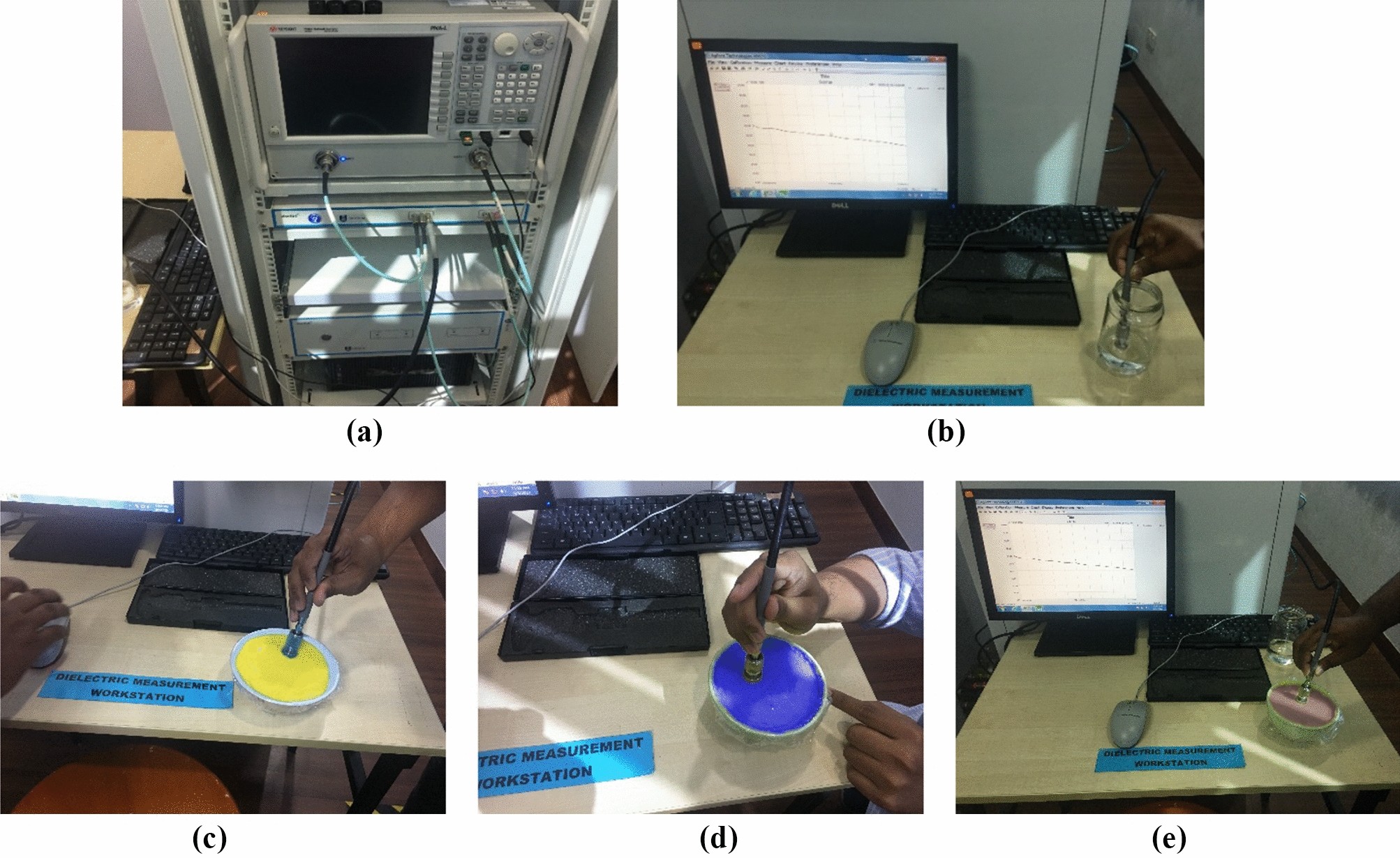

Phantom measurement process: (a) Phantom measurement setup with PNA; (b) Calibration with sterile water by open-ended coaxial probe; (c–e) Fabricated phantom measurement process using probe kit: DURA, CSF, and Gray Matter samples respectively.
