Figure 2 | Scientific Reports

Figure 2

From: Holistic tool for ecosystem services and disservices assessment in the urban forests of the Real Bosco di Capodimonte, Naples

Figure 2

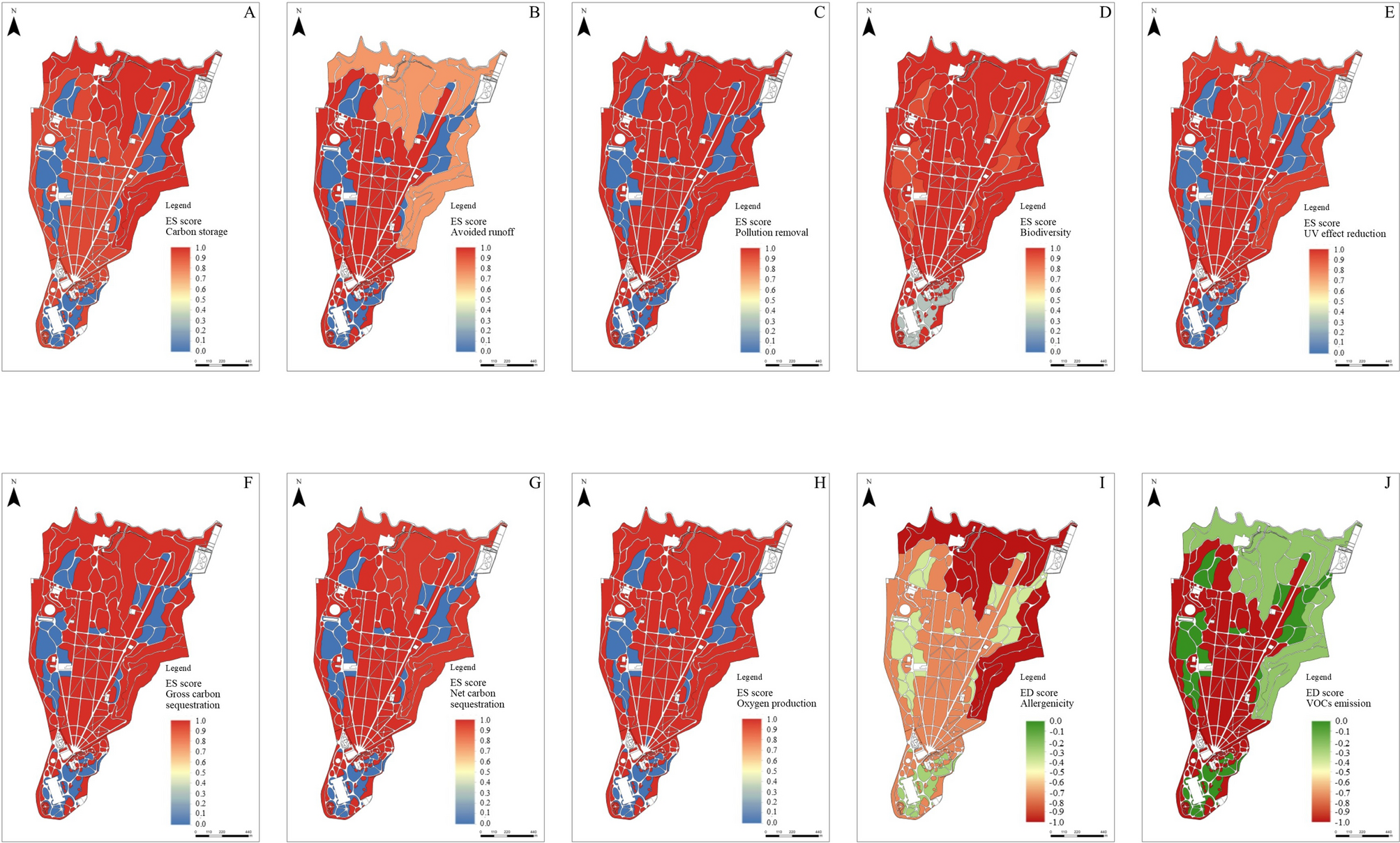

Raster maps of the RBC depicting the spatial distribution of ecosystem services and disservices in managed forests, natural forests, managed grasslands, and natural grasslands. For ecosystem services related to carbon storage (A), avoided runoff (B), pollution removal (C), biodiversity (D), UV effect reduction (E), gross carbon sequestration (F), net carbon sequestration (G), oxygen production (H), the ES score has been depicted with colorimetric scale, from 1.0 (red = maximum) to 0.0 (blue = minimum). For ecosystem disservices related to allergenicity (I) and VOCs emission (J) the ED score has been depicted with colorimetric scale, from 0.0 (green = maximum) to −1.0 (red = minimum). Raster maps have been created in QGIS environment Version 3.26.1 (http://qgis.osgeo.org) and modified in GIMP software Version 2.10.32 (https://www.gimp.org).
