Figure 2
From: Scaling behavior of InAlN/GaN HEMTs on silicon for RF applications

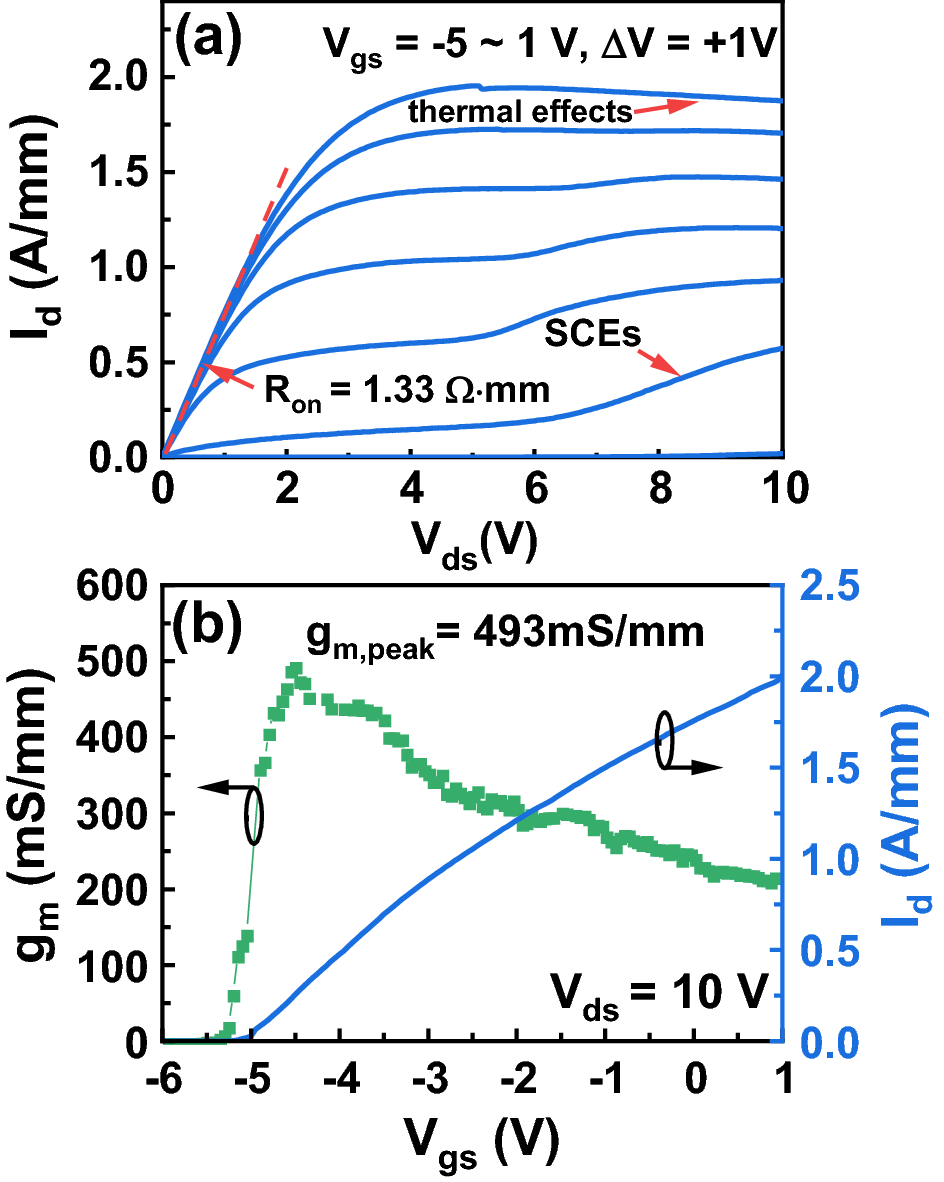

(a) Output characteristic, (b) the extrinsic transconductance gm, and the transfer characteristic at Vds = 10 V of the InAlN/GaN HEMT with a 50-nm gate length.
Figure 2 | Scientific Reports
