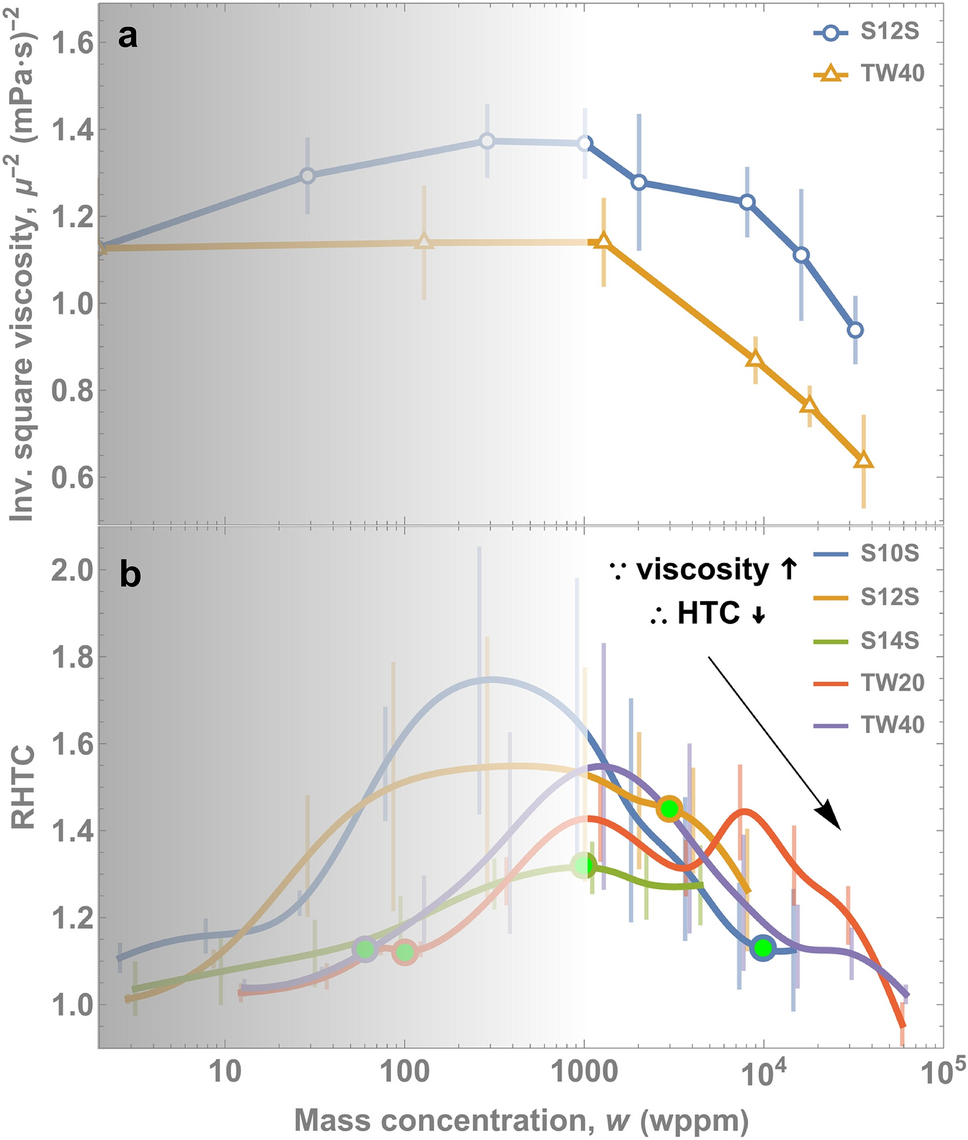

Figure 9
From: How dynamic adsorption controls surfactant-enhanced boiling
(a) The viscosity increases at high mass concentration values, which according to the Rohsenow correlation50, HTC ∝ μ-2. Indeed, (b) there a corresponding drop in RHTC with the increase in viscosity. Error bars in viscosity (one standard deviation in data deviations from measurements of the drop velocity and the ball bearing diameter and density). For more information about the propagation of errors, see Methods.
