Figure 7
From: Current stress minimization for isolated dual active bridge DC–DC converter

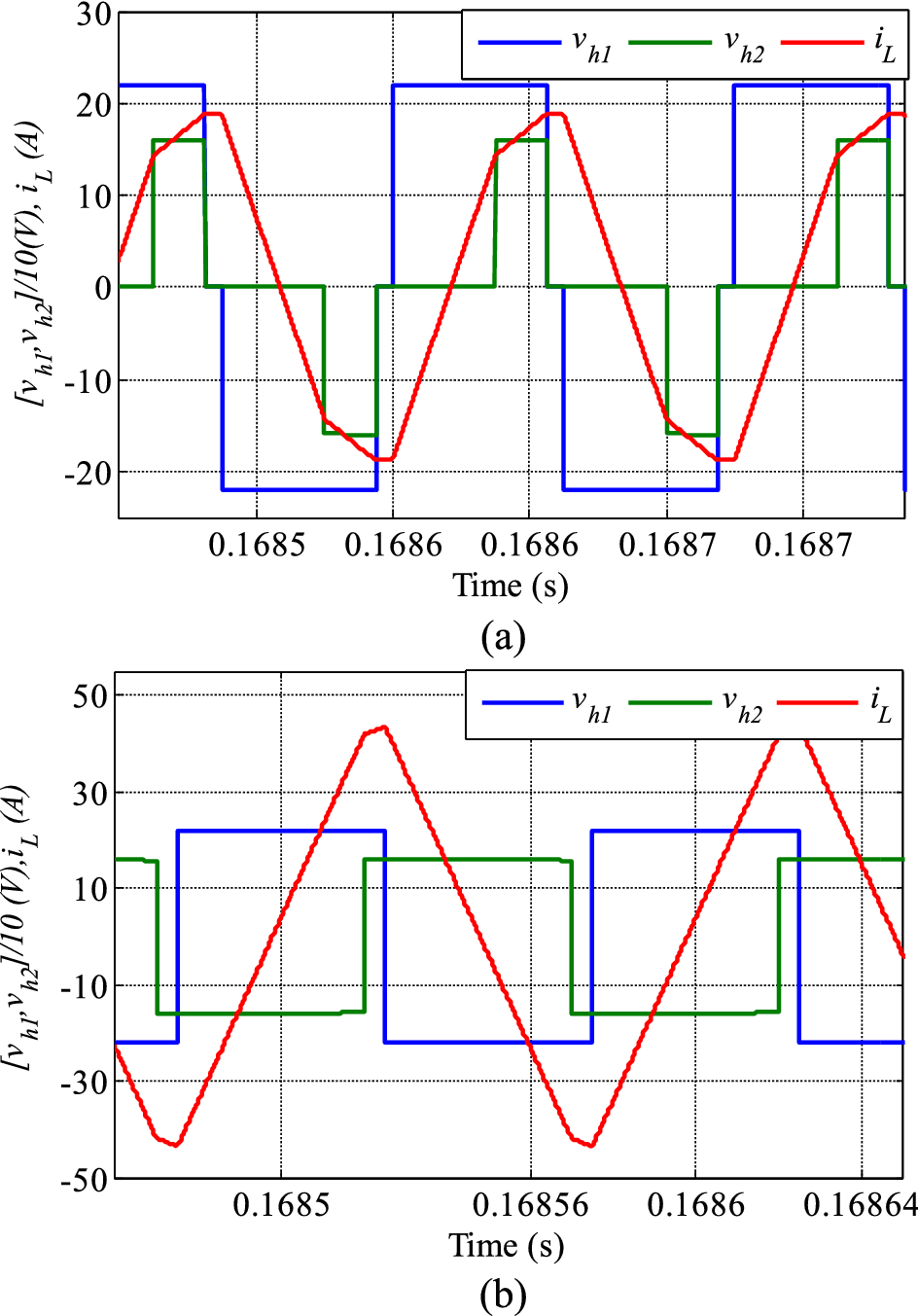

Current with voltage waveforms (a) proposed method (Pout = 800 W, D1 = 0.1, D2 = 0.7) (b) conventional SPS (Pout = 800 W, D = 0.9).
