Figure 2

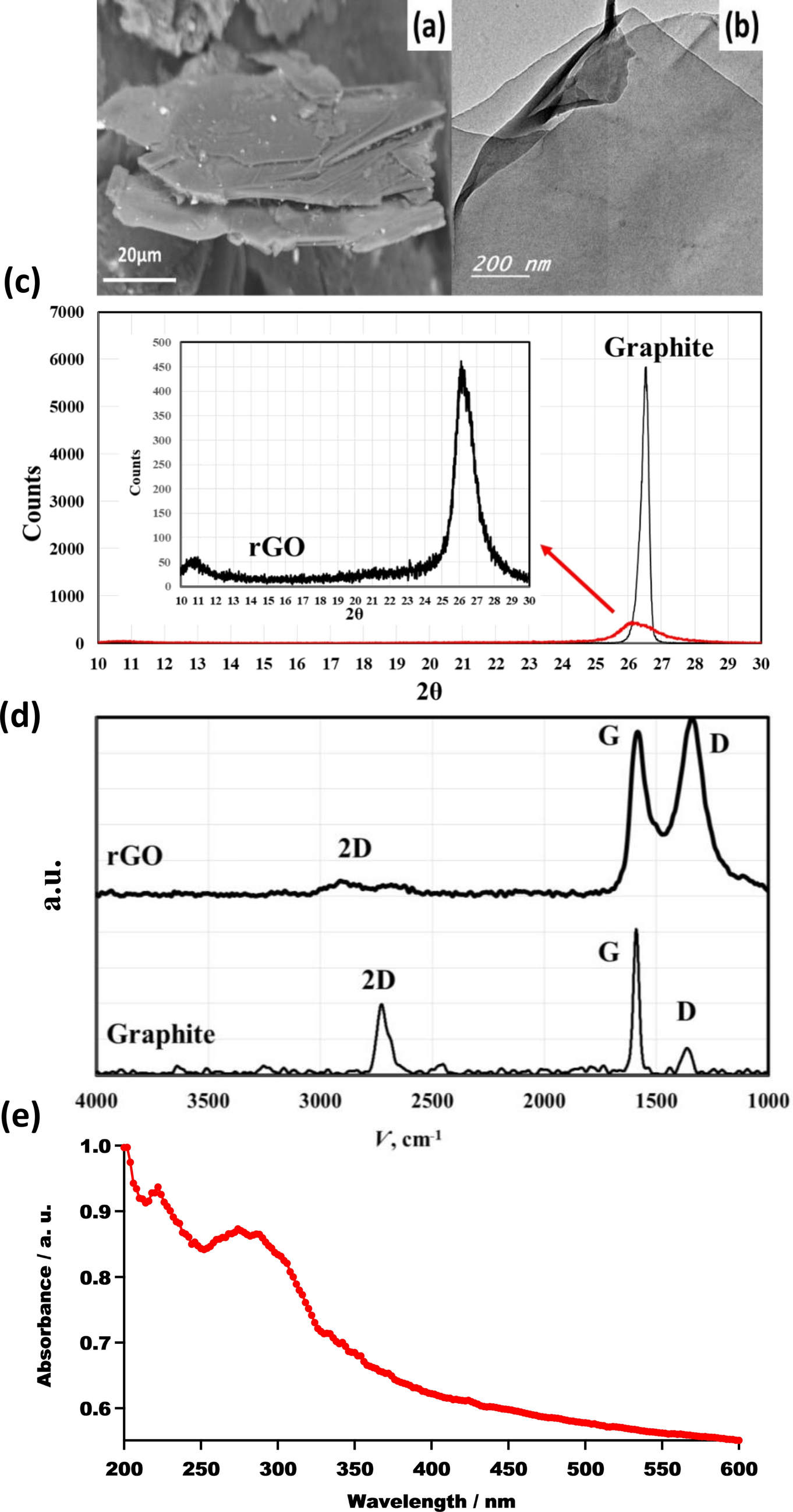

(a) SEM micrograph of the graphite precursor, (b) TEM micrograph of the produced rGO. (c) XRD diffraction pattern of the synthesized rGO. (d) Raman spectra of produced rGO compared to graphite precursor. (e) UV–Visible absorption spectrum of synthesized rGO.
