Figure 2
From: High-throughput 3D microvessel-on-a-chip model to study defective angiogenesis in systemic sclerosis

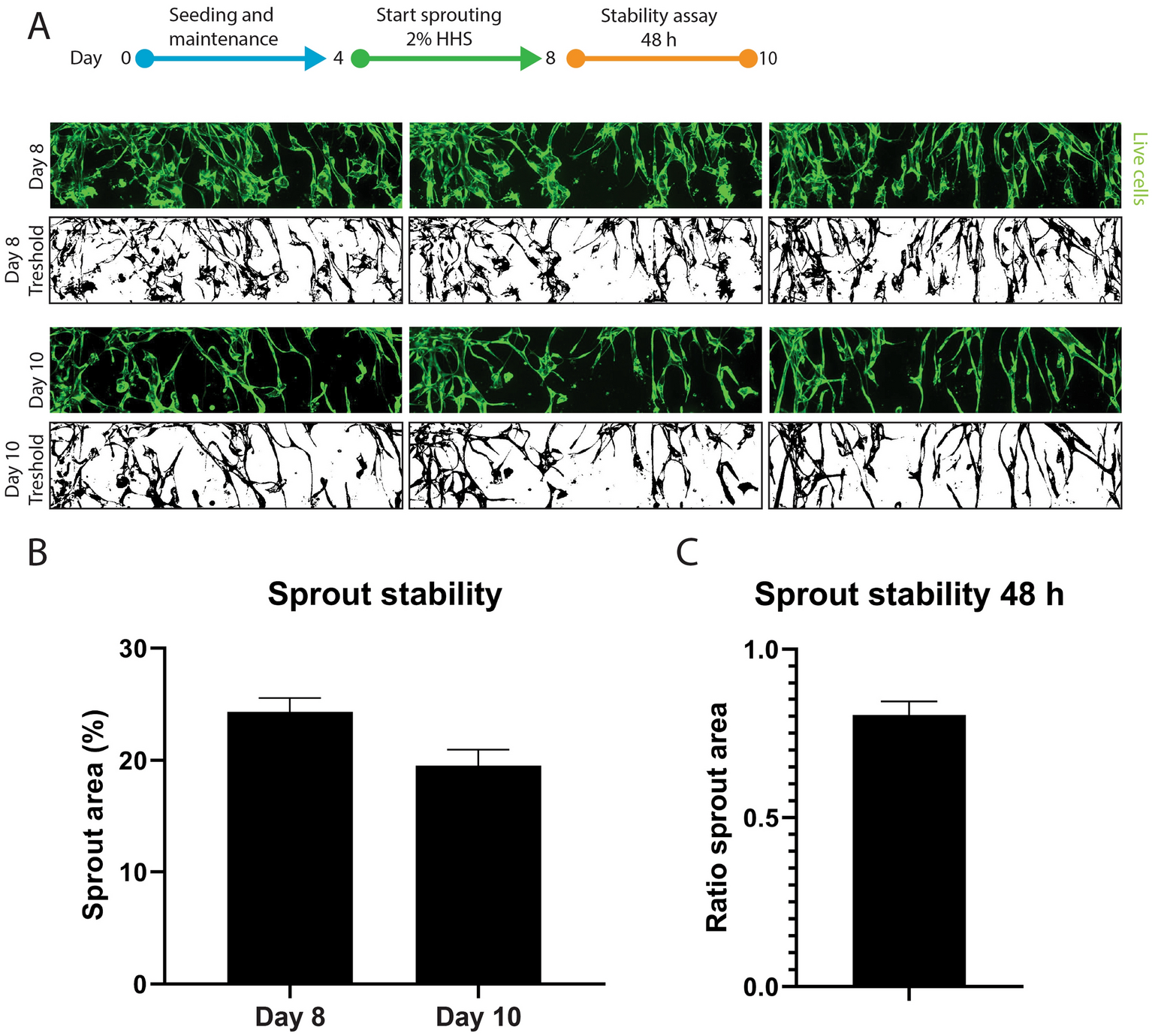

Stability assessment of sprouted HMVEC microvessels. (A) Representative maximum projection confocal images (top) and threshold images (bottom) used for quantification of the sprouting area. (B) Quantification of the area covered by sprouts at the start (day 8) and end (day 10) of the stability assay (n = 9, represented is mean ± SEM). (C) Ratio of the area covered by sprouts at day 10 versus day 8 (n = 9, shown is mean ± SEM).
