Figure 1
From: Microstructures at the distal tip of ant chemosensory sensilla

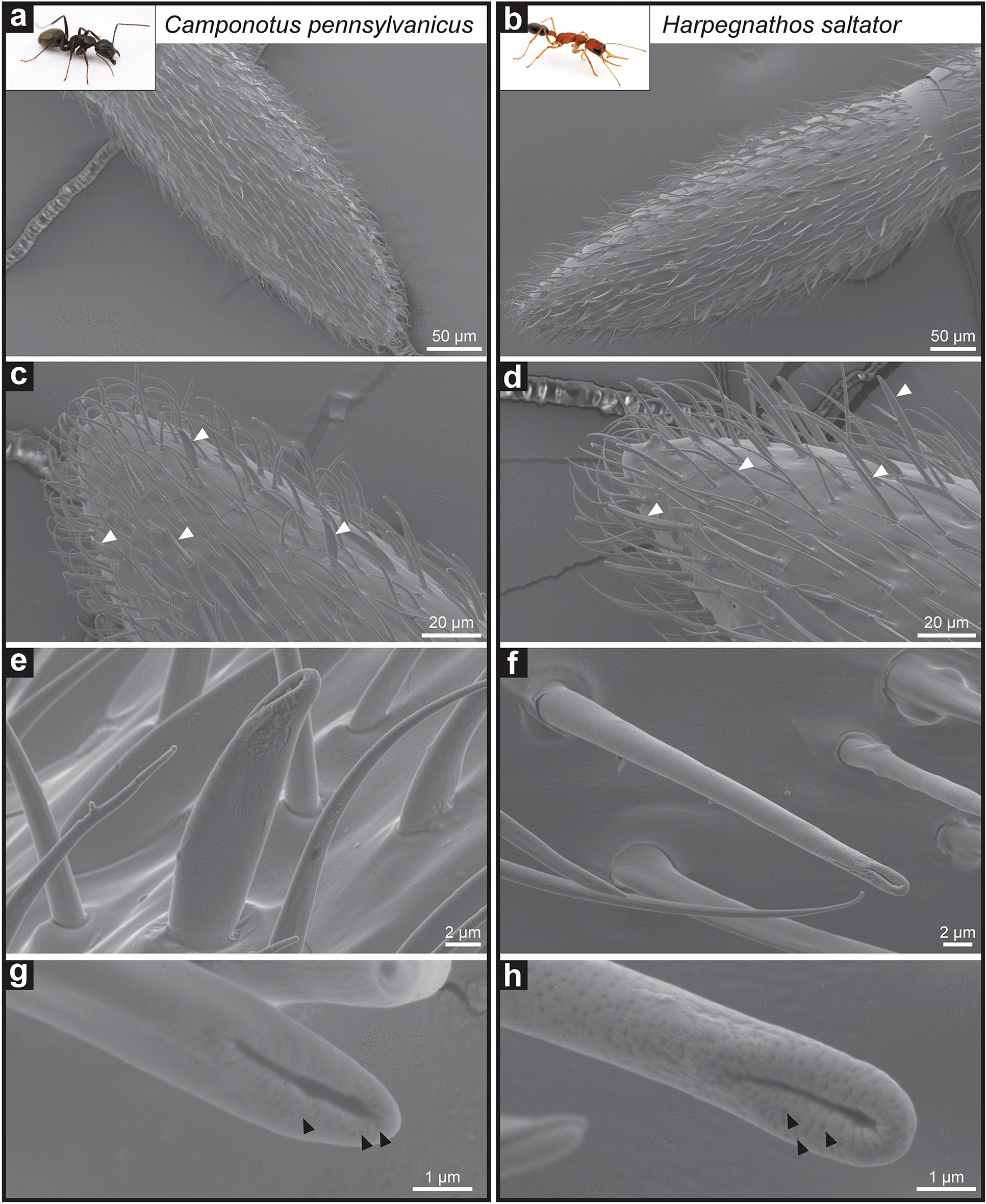

Morphology of chemosensory sensillum in C. pennsylvanicus and H. saltator. Representative images of a Camponotus pennsylvanicus minor worker (a,c,e,g) and Harpegnathos saltator worker (b,d,f,h). Panels depict the full 10th segment of the funiculus (a,b) and its distal tip with some basiconic sensilla highlighted by white arrowheads (c,d). Images of a basiconic single sensillum (e,f) and the terminal end (g,h) depict a large concave depression and several smaller pores indicated by black arrowheads. Inset ant images are provided courtesy of Alex Wild (alexanderwild.com).
