Figure 8 | Scientific Reports

Figure 8

From: Tandem duplication of a genomic region encoding glutathione S-transferase epsilon-2 and -4 genes in DDT-resistant Anopheles stephensi strain from India

Figure 8

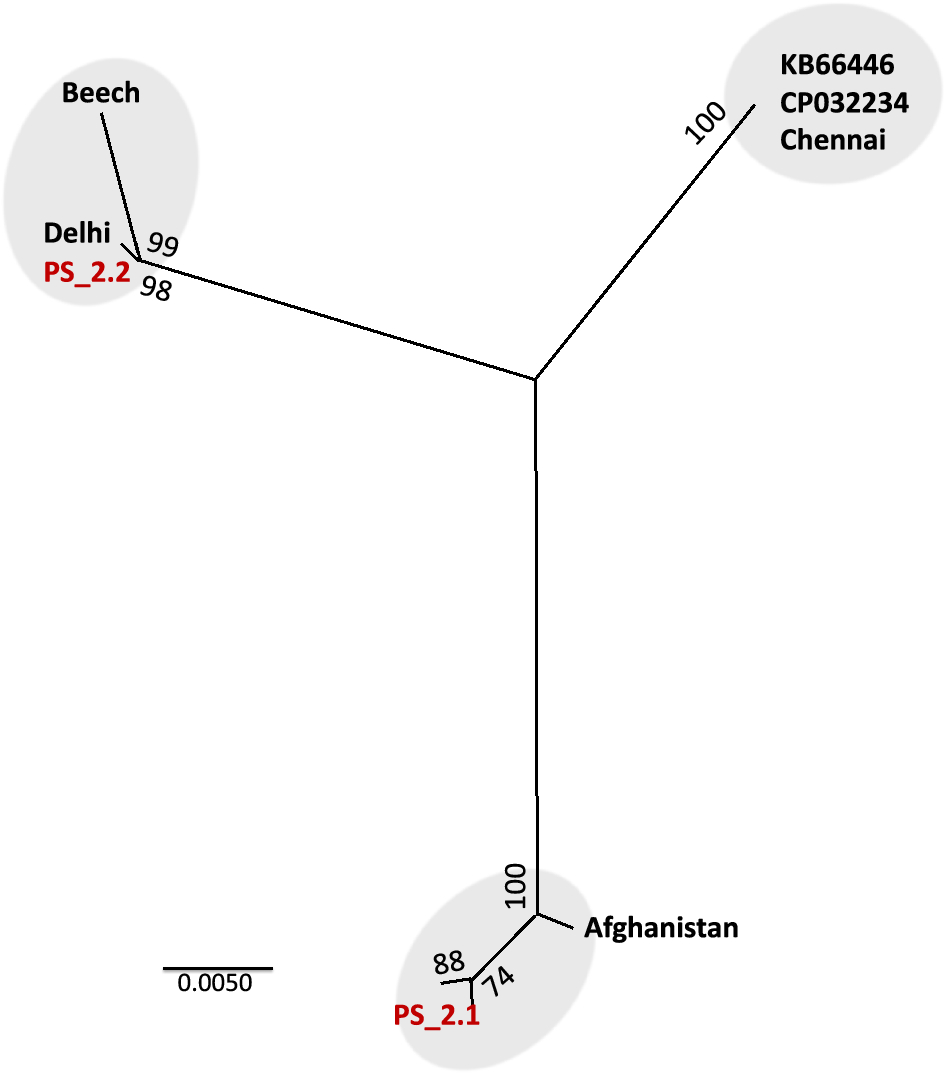

The maximum-likelihood phylogenetic tree inferred from all known ψAsGSTe2 depicting three distinct clades. PS2.1 and PS2.2 are two ψAsGSTe2 variants incorporated in a duplicated gene array in Alw-R. KB66446 and CP032234 represent scaffolds from two WGS assemblies (SDA-500, originating Pakistan) from where ψAsGSTe2 sequences were downloaded. Delhi and Chennai represent the locality of strains having a single copy of AsGSTe. Sequences of Beech (origin: Delhi) and Afghanistan were sourced from Ayres et al.25. Numbers shown on nodes indicate bootstrap value.
